PREPARATION
TRANSMISSION: GR6Z30A
Special Service Tools
|
Tool number (Kent-Moore number) Tool name |
Description |
|
|

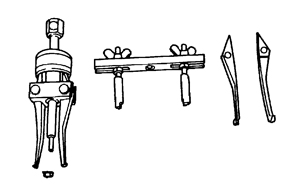

KV381054S0 (J-34286) Puller |
|
Removing the front oil seal |
|

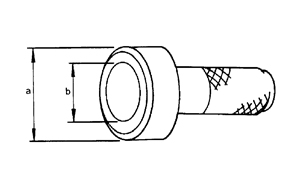

ST30720000 (J-25405) Drift a: 77 mm (3.03 in) dia. b: 55.5 mm (2.185 in) dia. |
|
Installing front oil seal |
|
KV40104830 ( — ) Drift a: 70 mm (2.76 in) dia. b: 63.5 mm (2.500) dia. |
|
Installing front oil seal |
Commercial Service Tools
|
Tool name |
Description |
|
|
Power tool |
|
Loosening bolts and nuts |
|
Flange wrench |
|
Removing and installing mounting nut of companion flange |
|
Puller |
|
Removing companion flange |
