PADDLE SHIFTER
TRANSMISSION: GR6Z30A

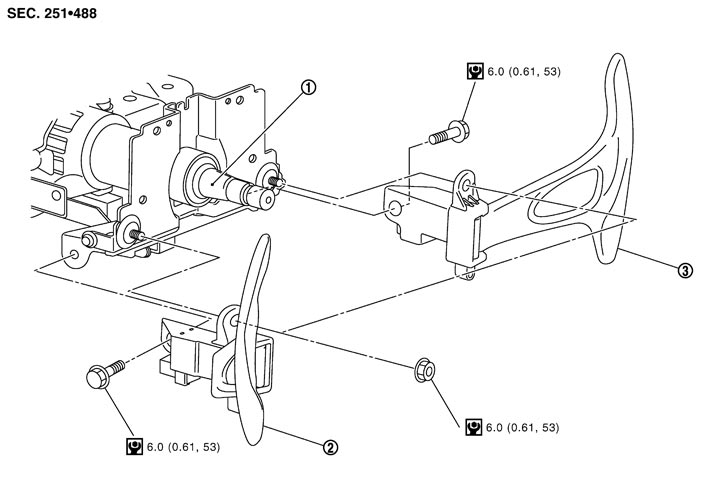

Exploded View
|
1. |
Steering column assembly |
2. |
Paddle shifter (shift-down switch) |
3. |
Paddle shifter (shift-up switch) |
|
Refer to Components in GI section for the symbols shown in the figure. |
|||||
Removal and Installation
REMOVAL- 1.Park the vehicle on a level surface.
- 2.Remove the steering column cover. Refer to Exploded View.
NOTE：

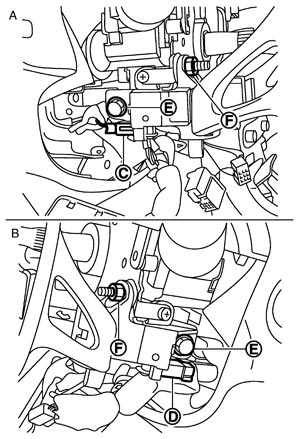

Rotate the steering wheel until the mounting screw can be seen, and then remove the mounting screw.- 3.Disconnect the harness connectors (C) and (D) from the paddle shifter.
| A | : Paddle shifter (shift-down switch) |
| B | : Paddle shifter (shift-up switch) |
- 4.Remove the bolt (E) and nut (F) from the paddle shifter.
NOTE：
Rotate the steering wheel until the mounting nut can be seen, and then remove the mounting nut.- 5.Remove the paddle shifter from the steering column assembly.
INSTALLATIONInstall in the reverse order of removal.
