OIL PAN
TRANSMISSION: GR6Z30A

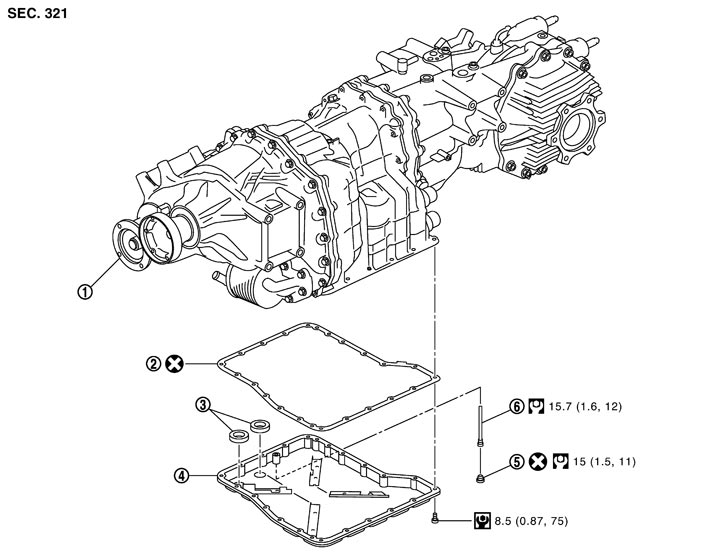

Exploded View
|
1. |
Transmission assembly |
2. |
Oil pan gasket |
3. |
Magnet |
|
4. |
Oil pan |
5. |
Drain plug |
6. |
Drain tube |
|
Refer to Components in GI section for the symbols shown in the figure. |
|||||
Removal and Installation
REMOVAL- 1.Remove the front diffuser. Refer to Exploded View.
- 2.Drain the transmission oil from the transmission assembly. Refer to Draining.

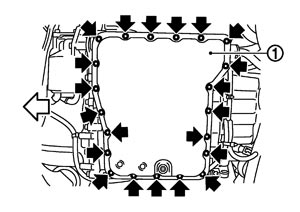

- 3.Remove the oil pan mounting bolt (
), and then remove the oil pan (1) and oil pan gasket.
 | : Front of vehicle |
- 4.Remove the magnet (1) from the oil pan.
INSTALLATIONNote the following, and install in the reverse order of removal.
■ CAUTION ■
- Clean foreign matter (gear wear particles) that are adhered on the inside of the oil pan and on the magnet, and then assemble.
- Completely wipe out any moisture, oil and old gasket from the gasket mounting surface.
- Never reuse oil pan gaskets.
- Never forget assembly of drain tube.
- Never reuse drain plug. In addition, install new drain plug after adjustment of transmission oil filling.

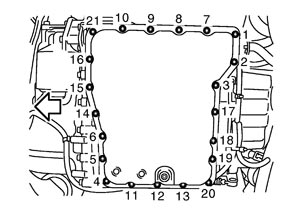

- When the oil pan is installed, tighten bolts in the order shown in the figure after temporarily tightening the oil pan mounting bolt.
: Front of vehicle - Fill with the transmission oil to the transmission assembly after installation. Refer to Filling.
