Nissan GT-R (R35) · Service Manual TRANSMISSION & DRIVELINE

TRANSMISSION ASSEMBLY

TRANSMISSION: GR6Z30A

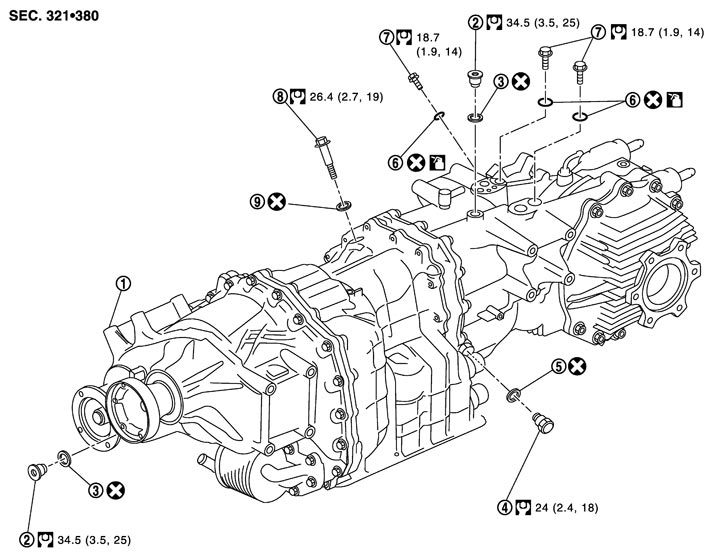

Exploded View




1.
 		Transmission assembly
 		2.
 		Filler plug
 		3.
 		Filler plug gasket
4.
 		3rd-5th check pin
 		5.
 		Plane washer
 		6.
 		O-ring
7.
 		Plug
 		8.
 		Idler bolt
 		9.
 		Plane washer

: Apply Genuine NISSAN Transmission oil R35 Special.

Refer to Components in GI section for the symbols other than above.

Disassembly and assembly


 DISASSEMBLY

NOTE：
 For any parts other than filler plug, remove and replace only when a trace of oil leakage is detected.
Be careful of the following items when removing the component parts.
  • Drain the transmission oil before removing the 3rd-5th check pin. Refer to Draining.
  • Stop the engine with the shift lever in the P position before removing the 3rd-5th check pin.

 ASSEMBLY

Be careful of the following items when installing the component parts.
■ CAUTION ■
  • Never reuse filler plug gasket.
  • Never reuse plain washer.
  • Never reuse O-ring.
  • Apply the transmission oil when installing the O-ring.
  • Temporarily tighten by hand, and then tighten to the specified torque when installing the parts to the transmission assembly.

  • Fill with the transmission oil after installation. Refer to Filling.
