HOOD SUPPORT ROD

HOOD

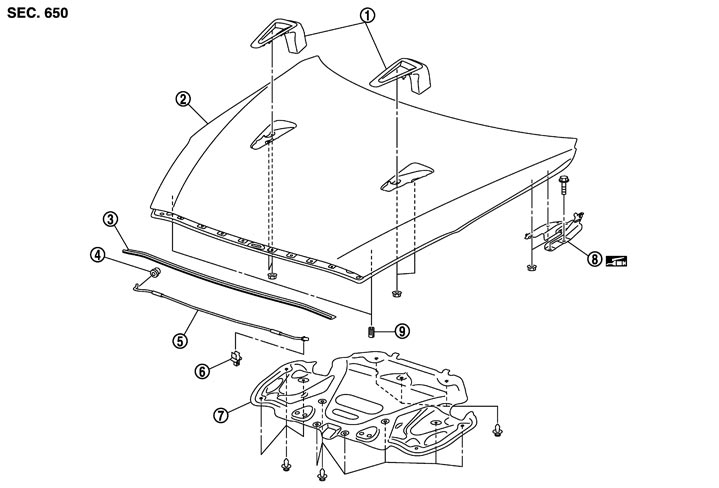

Exploded View

1.	Hood air intake	2.	Hood panel	3.	Hood front seal
4.	Grommet	5.	Hood support rod	6.	Clamp
7.	Hood insulator	8.	Hood hinge	9.	Hood bumper rubber
Refer to Components for the symbols shown in the figure.

■ CAUTION ■
Two workers are required to support the hood.

REMOVAL

Pull out and remove the hood support rod from the grommet.

INSTALLATION

Install in the reverse order of removal.
