OUTSIDE HANDLE
DOOR LOCK

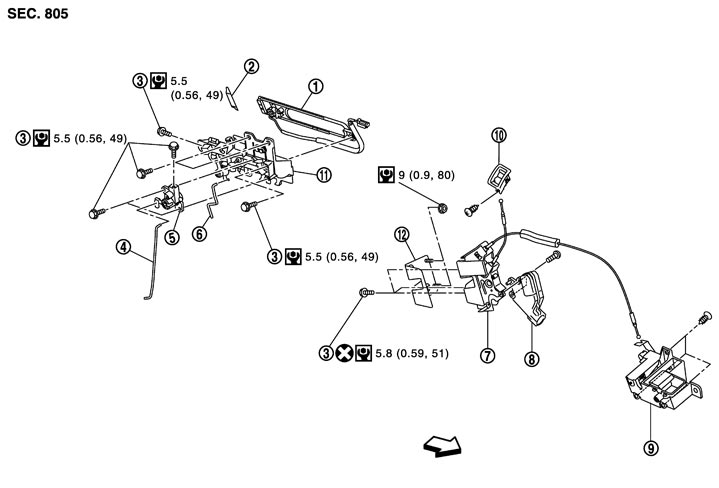

Exploded View
|
1. |
Outside handle escutcheon |
2. |
Outside handle cap |
3. |
TORX bolt |
|
4. |
Key cylinder rod (driver side) |
5. |
Key cylinder (driver side) |
6. |
Outside handle rod |
|
7. |
Door lock assembly (standard model) |
8. |
Door actuator assembly (standard model) |
9. |
Inside handle |
|
10. |
Door lock knob |
11. |
Outside handle assembly |
12. |
Door lock stiffener |
 : Vehicle front |
|||||
|
Refer to Components for the symbols shown in the figure. |
|||||
Removal and Installation
REMOVAL- 1.Remove the door finisher. Refer to Removal and Installation.
- 2.Remove the inside handle cable from the inside handle. Remove the door lock knob cable from the door lock knob.
■ CAUTION ■
Never bend the cable end. - 3.Remove the sealing screen and the door window. Refer to Removal and Installation (GT-R certified NISSAN dealer).
- 4.Remove the door inner west reinforcement. Refer to Exploded View.
- 5.Disengage the joint of key cylinder rod (driver side) and outside handle rod at the outside handle side.
- 6.Disconnect the door request switch connector.

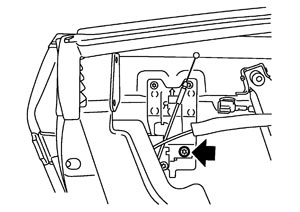

- 7.Remove the TORX bolt of outside handle escutcheon by the arrow in the figure.
- 8.Pull out and remove the outside handle escutcheon (2) toward vehicle rear while pulling the outside handle (1) forward.
■ CAUTION ■

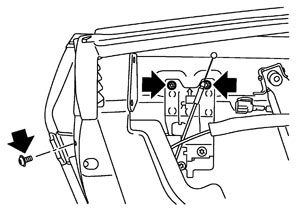

Never damage the vehicle. - 9.Remove the TORX bolt by the arrows in the figure, and then remove the outside handle assembly.
- 10.Remove the TORX bolt and blind bolt, and then remove the key cylinder from the outside handle assembly. (Driver side)
INSTALLATIONInstall in the reverse order of removal.
■ CAUTION ■
- When installing each rod, rotate rod holder until a click is felt.
- After installation, check door open/close, lock/unlock operation.
