TRUNK LID LOCK

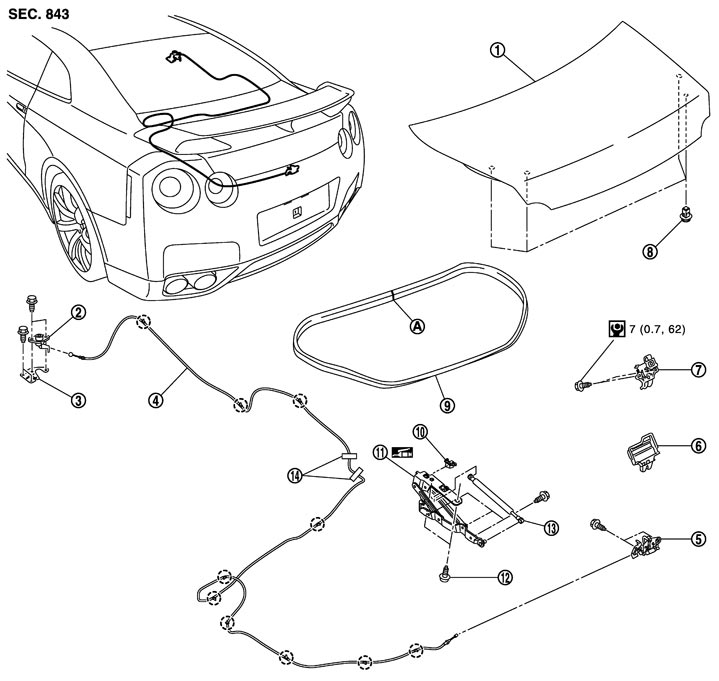

Exploded View
|
1. |
Trunk lid assembly |
2. |
Trunk lid key cylinder |
3. |
Trunk lid cylinder bracket |
|
4. |
Trunk lid lock control cable |
5. |
Trunk lid striker |
6. |
Trunk lid lock cover |
|
7. |
Trunk lid lock assembly |
8. |
Bumper rubber |
9. |
Trunk lid weather-strip |
|
10. |
Trunk lid hinge stopper |
11. |
Trunk lid hinge |
12. |
TORX bolt |
|
13. |
Trunk lid stay |
14. |
Protector harness |
|
|
|
A. |
Vehicle center mark |
|
|||
|
: Clip |
|
|
|
|
|
Refer to Components for the symbols shown in the figure. |
|||||
Removal and Installation
REMOVAL- 1.Remove the trunk lid finisher inner. Refer to Removal and Installation.
- 2.Disconnect the trunk lid lock actuator harness connector.
- 3.Remove the mounting bolts, and then remove trunk lid lock assembly.
INSTALLATIONInstall in the reverse order of removal.
■ CAUTION ■
After installation, check trunk lid open/close, lock/unlock operation.
