FRONT WHEEL SENSOR

WHEEL SENSOR · VDC/TCS/ABS

Exploded View
Removal and Installation

Exploded View

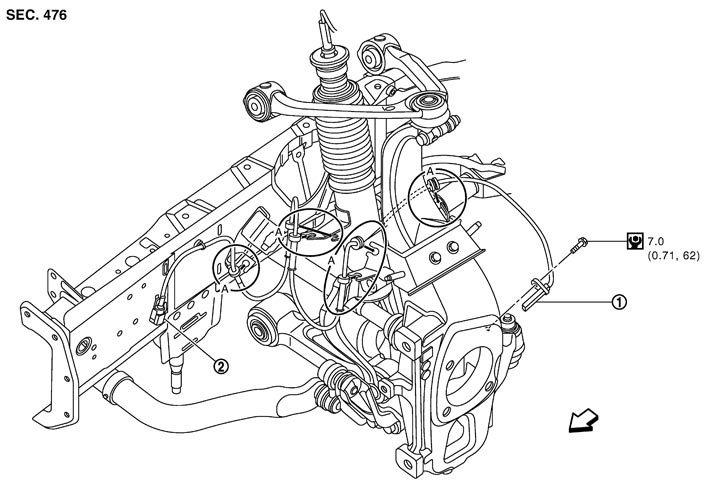

1.	Front LH wheel sensor	2.	Front LH wheel sensor connector
: Vehicle front
Refer to GI section Components for symbol marks in the figure.

NOTE：
The above figure shows left side. Right side is the mirror image.

Removal and Installation

REMOVAL

Be careful with the following items when removing sensor.
■ CAUTION ■
Never twist sensor harness, when removing it. Pull sensors out without pulling sensor harness.

INSTALLATION

Be careful with the following items when installing wheel sensor. Tighten installation bolts to the specified torques. Refer to Exploded View (GT-R certified NISSAN dealer).
■ CAUTION ■
When installing, check that there is no foreign matter such as iron chips on or in the mounting hole of the wheel sensor. Check that no foreign matter is caught in the sensor rotor. Remove any foreign matter and clean the mount.
When installing wheel sensor, always press rubber grommets (A) in until they lock at the locations shown above in the figure. When installed, harness must not be twisted.
