REAR WHEEL SENSOR

WHEEL SENSOR · VDC/TCS/ABS

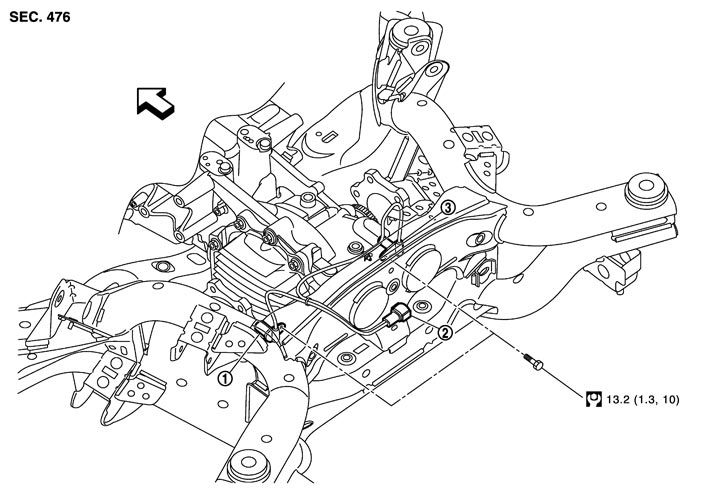

Exploded View




1.
 		Rear LH wheel sensor
 		2.
 		Rear wheel sensor connector
 		3.
 		Rear RH wheel sensor
: Vehicle front
Refer to GI section Components for symbol marks in the figure.

Removal and Installation


 REMOVAL

Be careful with the following items when removing sensor.
■ CAUTION ■
Never twist sensor harness as much as possible, when removing it. Pull sensors out without pulling sensor harness.

 INSTALLATION

Be careful with the following items when installing wheel sensor. Tighten installation bolts to the specified torques. Refer to Exploded View (GT-R certified NISSAN dealer).
■ CAUTION ■
When installing, check that there is no foreign matter such as iron chips on or in the mounting hole of the wheel sensor. Check that no foreign matter is caught in the sensor rotor. Remove any foreign matter and clean the mount.
