Nissan GT-R (R35) · Service Manual VENTILATION, HEATER & AIR CONDITIONER

INTAKE DOOR MOTOR

AUTOMATIC AIR CONDITIONER

Exploded View




1.
 		Intake box RH
 		2.
 		Intake door 2
 		3.
 		Intake box LH
4.
 		Intake door lever 2
 		5.
 		Intake door motor
 		6.
 		Intake door link
7.
 		Intake door lever 1
 		8.
 		Filter cover
 		9.
 		In-cabin microfilter
10.
 		Intake upper case
 		11.
 		Intake lower case
 		12.
 		Blower motor assembly
13.
 		Seal
 		14.
 		Intake door 1


Removal and Installation


 REMOVAL

    1.Remove instrument panel LH. Refer to Exploded View.
    2.Disconnect E-SUS control unit connector.
    3.Disconnect ECM connectors.
    4.Remove mounting nuts (A), and then remove ECM (1) with bracket attached.
    5.Remove power steering control unit. Refer to Exploded View (GT-R certified NISSAN dealer).

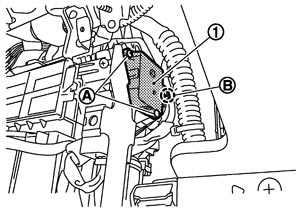

    6.Remove mounting screws (A), and then remove intake door motor (1) from blower unit.
    7.Disconnect intake door motor connector (B).

 INSTALLATION

Installation is basically the reverse order of removal.
