DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

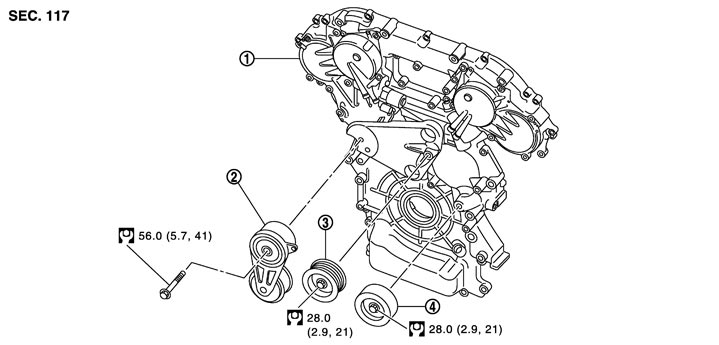

Exploded View
|
1. |
Front timing chain case |
2. |
Drive belt auto‐tensioner |
3. |
Idler pulley |
|
4. |
Idler pulley |
|
|
|
|
|
Refer to Components for symbols in the figure. |
|||||
Removal and Installation
Removal- 1.Remove drive belt. Refer to Exploded View.
- Keep auto‐tensioner pulley arm locked after drive belt is removed.
- 2.Remove auto‐tensioner and idler pulley.
- Keep auto‐tensioner pulley arm locked to install or remove auto‐tensioner.
InstallationNote the following, and install in the reverse order of removal.
■ CAUTION ■
- Check drive belt is securely installed around all pulleys.
- Check drive belt is correctly engaged with the pulley groove.
- Check for engine oil and engine coolant are not adhered drive belt and pulley groove.
