AIR CLEANER AND AIR DUCT

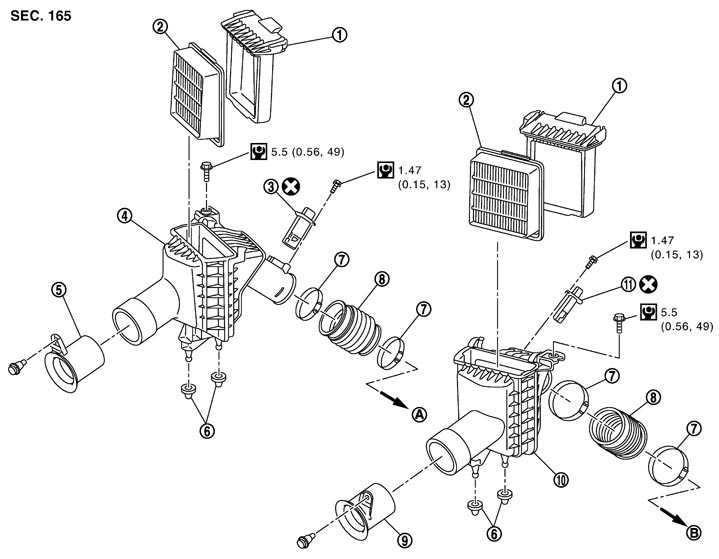

Exploded View
|
1. |
Holder |
2. |
Air cleaner filter |
3. |
Mass air flow sensor (bank 1) |
|
4. |
Air cleaner case (bank 1) |
5. |
Dust side duct (bank 1) |
6. |
Grommet |
|
7. |
Clamp |
8. |
Air duct |
9. |
Dust side duct (bank 2) |
|
10. |
Air cleaner case (bank 2) |
11. |
Mass air flow sensor (bank 2) |
|
|
|
A. |
To exhaust manifold and turbocharger (bank 1) |
B. |
To exhaust manifold and turbocharger (bank 2) |
|
|
|
Refer to Components for symbols in the figure. |
|||||
Removal and Installation
REMOVALNOTE：
Mass air flow sensor is removable under the car-mounted condition.
- 1.Disconnect mass air flow sensor harness connector.
- 2.Remove radiator cover. Refer to Exploded View (GT-R certified NISSAN dealer).
- 3.Remove dust side duct.
- 4.Disconnect ground cable at front timing chain case side.
- 5.Remove recirculation pipe and air inlet hose. Refer to Exploded View.
- 6.Remove air cleaner case with mass air flow sensor and air duct, disconnecting each joints.
- Mark with paint for a reference purpose before removal.
- 7.Remove mass air flow sensor from air cleaner case, if necessary.
■ CAUTION ■
Mass air flow sensor is nonreusable. Never mass flow sensor remove unless this is required. INSTALLATIONNote the following, and install in the reverse order of removal.
- Align marks. Attach each joint. Screw clamps firmly.
Clamp tightening torque
: 4.5 N·m (0.46 kg-m, 40 in-lb)■ CAUTION ■Never use air tool or power tools for tightening.
