Nissan GT-R (R35) · Service Manual ENGINE

ENGINE COVER

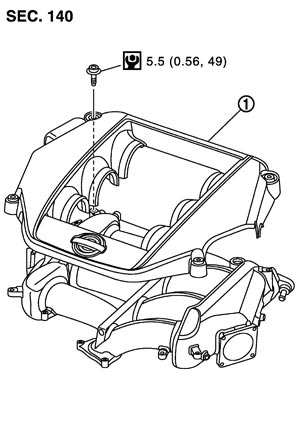

Exploded View




1.
 		Engine room cover
Refer to Components for symbols in the figure.

Removal and Installation


 Removal

Remove engine cover with the following cares.
■ CAUTION ■
  • Perform this step when the engine is cold.
  • Never damage engine cover.
  • Wipe out oil with wasted as soon as possible whenever necessary.
  • Never exert pressure by hand on the surface of engine cover.


 Installation

Install engine cover with the following cares.
■ CAUTION ■
  • Never damage engine cover.
  • Never get harnesses and hoses caught between engine cover and intake manifold collector.
  • Wipe out oil with wasted as soon as possible whenever necessary.
  • Never exert pressure by hand on the surface of engine cover.
