TOP TETHER STRAP CHILD RESTRAINT

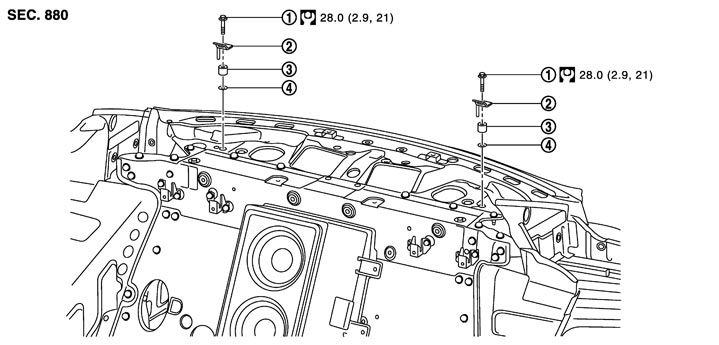

Exploded View
|
1. |
Anchor bolt |
2. |
Anchor plate |
3. |
Spacer |
|
4. |
Fiber washer |
|
|
|
|
|
Refer to Components for symbols in the figure. |
|||||
Removal and Installation
REMOVAL■ CAUTION ■
Replace anchor bolts if they are deformed or worn out.
- 1.Remove the rear parcel shelf. Refer to Removal and Installation.
- 2.Remove the top tether strap child restraint.
INSTALLATIONInstall in the reverse order of removal.
