PREPARATION
FRONT FINAL DRIVE: F160A
Special Service Tools
| Tool number (Kent-Moore No.) Tool name | Description | |

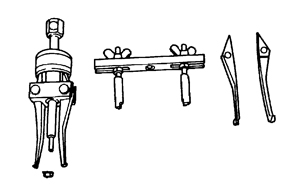

| KV381054S0 (J-34286) Puller |  |
|

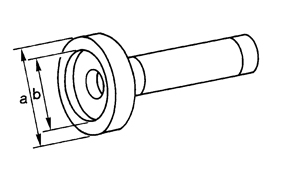

| ST33400001 (J-26082) Drift a: 60 mm (2.36 in) dia. b: 47 mm (1.85 in) dia. |  |
|

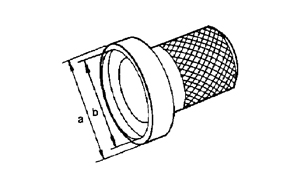

| KV38102100 (J-25803-01) Drift a: 44 mm (1.73 in) dia. b: 36 mm (1.42 in) dia. c: 24.5 mm (0.965 in) dia. |  | Installing side oil seal (left side) |
| KV38100200 ( — ) Drift a: 65 mm (2.56 in) dia. b: 49 mm (1.93 in) dia. |  | Installing side shaft oil seal |

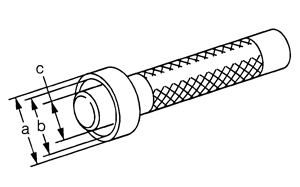

| ST30032000 (J-26010-01) Drift a: 80 mm (3.15 in) dia. b: 38 mm (1.50 in) dia. c: 31 mm (1.22 in) dia. |  |
|

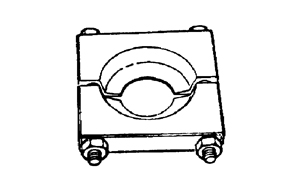

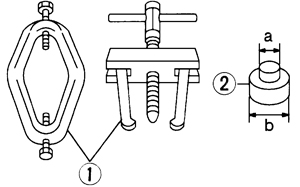

| ST3306S001 (J-22888-D) Differential side bearing puller set 1: ST33051001 (J-22888-20) Puller 2: ST33061000 (J-8107-2) Base a: 28.5 mm (1.122 in) dia. b: 38 mm (1.50 in) dia. |  | Removing and installing side bearing inner race |
| ST33230000 (J-25805-01) Drift a: 51 mm (2.01 in) dia. b: 41 mm (1.61 in) dia. c: 28.5 mm (1.122 in) dia. | | Installing side bearing inner race |
| ST30611000 (J-25742-1) Drift bar |  | Installing side bearing outer race (Use with KV31103000) |
| KV31103000 (J-38982) Drift a: 49 mm (1.93 in) dia. b: 70 mm (2.76 in) dia. |  | Installing side bearing outer race |
| ST3127S000 (J-25765-A) Preload gauge |  | Measuring pinion bearing preload and total preload |
| (J-8129) Spring gauge |  | Measuring turning torque |
| ST37820000 ( — ) Drift a: 39 mm (1.54 in) dia. b: 72 mm (2.83 in) dia. |  | Installing pinion front and rear bearing outer race |
| KV38102510 ( — ) Drift a: 71 mm (2.80 in) dia. b: 65 mm (2.56 in) dia. |  | Installing front oil seal |
Commercial Service Tools
|
Tool name |
|
Description |
|
Flange wrench |
|
Removing and installing drive pinion lock nut |
|
Replacer |
|
Removing pinion rear bearing inner race |
|

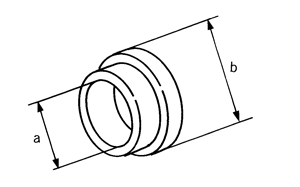

Spacer a: 60 mm (2.36 in) dia. b: 36 mm (1.42 in) dia. c: 30 mm (1.18 in) |
|
Installing pinion front bearing inner race |
|
Power tool |
|
Loosening bolts and nuts |
