RIGHT SIDE
SIDE OIL SEAL · FRONT FINAL DRIVE: F160A
Exploded View
|
1. |
Drive pinion lock nut |
2. |
Companion flange |
3. |
Front oil seal |
|
4. |
Pinion front bearing |
5. |
Drive pinion bearing adjusting washer |
6. |
Drive pinion adjusting washer |
|
7. |
Gear carrier |
8. |
Pinion rear bearing |
9. |
Pinion height adjusting washer |
|
10. |
Drive pinion |
11. |
Drive gear |
12. |
Side oil seal (right side) |
|
13. |
Side retainer |
14. |
O-ring |
15. |
Side bearing adjusting shim |
|
16. |
Side bearing |
17. |
Differential case |
18. |
Breather connector |
|
19. |
Dowel pin |
20. |
Filler plug |
21. |
Drain plug |
|
22. |
Gasket |
23. |
Carrier cover |
24. |
Gear oil defense |
|
25. |
Gasket |
26. |
Side gear thrust washer |
27. |
Side gear |
|
28. |
Circular clip |
29. |
Pinion mate thrust washer |
30. |
Pinion mate gear |
|
31. |
Pinion mate shaft |
32. |
Lock pin |
33. |
Side bearing adjusting washer |
|
34. |
O-ring |
35. |
Side oil seal (left side) |
36. |
O-ring |
|
37. |
Side shaft bearing |
38. |
Extension tube retainer |
39. |
Side shaft oil seal |
|
40. |
Dust seal |
41. |
Side shaft |
|
|
|
A: |
Oil seal lip |
B: |
Screw hole |
|
|
 : Apply gear oil. Refer to Fluids and Lubricants. |
|||||
 : Apply anti-corrosion oil. |
|||||
 : Apply Genuine Medium Strength Thread Locking Sealant or equivalent. Refer to Recommended Chemical Products and Sealants. |
|||||
|
Refer to Components for symbols not described above. |
|||||
Removal and Installation
REMOVAL- 1.Remove the front drive shaft. Refer to Exploded View (GT-R certified NISSAN dealer).

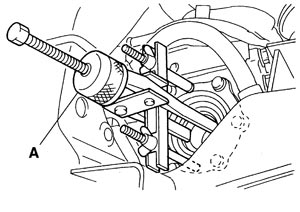

- 2.Remove the side oil seal using a puller (A) [SST: KV381054S0 (J-34286)].
■ CAUTION ■
Never damage gear carrier. INSTALLATION- 1.Apply multi-purpose grease to sealing lips of side oil seal.
- 2.Using the drift (A) [SST: ST33400001 (J-26082)], press-fit side oil seal so that its surface comes face‐to‐face with the end surface of the side retainer.
- Never reuse oil seal.
- When installing, never incline oil seal.
■ CAUTION ■
- 3.Install the front drive shaft. Refer to Exploded View (GT-R certified NISSAN dealer).
- 4.When oil leaks while removing, check oil level after the installation. Refer to Inspection.
