INSIDE MIRROR

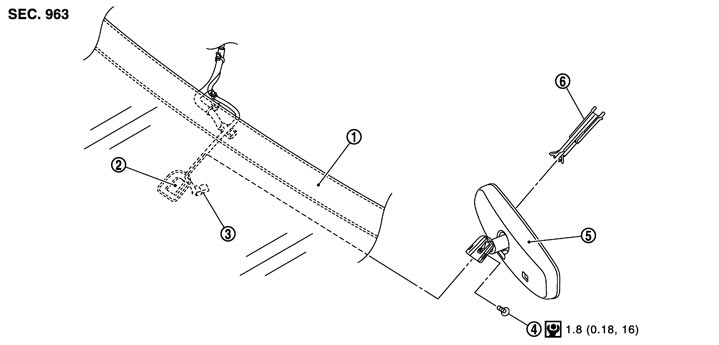

Exploded View

1.	Windshield glass	2.	Mirror base	3.	Harness connector
4.	TORX bolt	5.	Inside mirror	6.	Inside mirror cover
Refer to Components for symbols in the figure.

REMOVAL

1.Remove the inside mirror cover.

2.Remove the TORX bolt.

3.Disconnect harness connector from inside mirror.

4.Slide the inside mirror upward to remove.

INSTALLATION

Install in the reverse order of removal.
