PUSH BUTTON IGNITION SWITCH
POWER DISTRIBUTION SYSTEM
Exploded View
Removal and Installation
REMOVAL- 1.Remove control device. Refer to Removal and Installation.

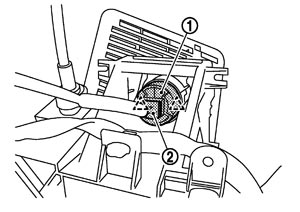

- 2.Disconnect push-button ignition switch connector (2).
- 3.Remove the push-button ignition switch fixing pawl, and then remove push-button ignition switch (1).
|
: Pawl |
INSTALLATIONInstall in the reverse order of removal.
