Nissan GT-R (R35) · Service Manual MAINTENANCE

FRONT PROPELLER SHAFT: 3F56A-D0J75

CHASSIS MAINTENANCE


 NOISE

  • Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.
  • If center bearing is noisy or damaged, replace propeller shaft assembly.

 RUNOUT

If vibration is present at high speed, inspect propeller shaft runout first.

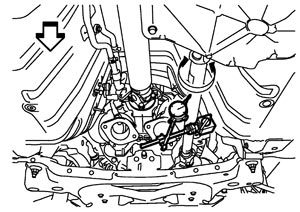

    1.With a dial indicator, measure propeller shaft runout at runout measuring points by rotating final drive companion flange.

    : The front of vehicle


    Limit
    Propeller shaft runout
    		: Refer to Propeller Shaft Runout (GT-R certified NISSAN dealer).

    2.If runout still exceeds specifications, separate propeller shaft from final drive companion flange or transfer companion flange; then rotate companion flange 90, 180, 270 degrees and install propeller shaft.
    3.Check runout again. If runout still exceeds specifications, replace propeller shaft assembly.
    4.Check the vibration by driving vehicle.

 RUNOUT MEASURING POINT

Propeller shaft runout measuring point (point “”)


Dimension
A: 330 mm (12.99 in)

B: 421 mm (16.57 in)
