DRIVE BELT
ENGINE MAINTENANCE

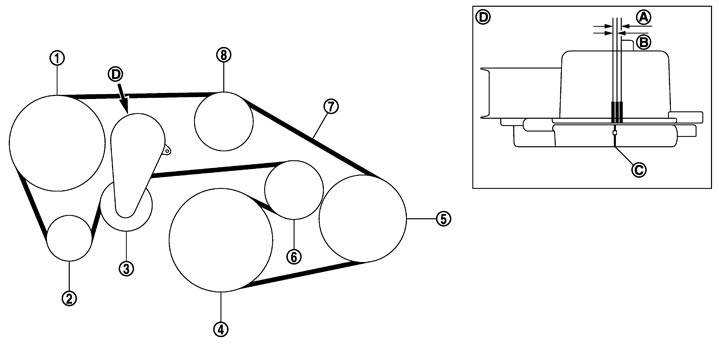

Exploded View
|
1. |
Power steering oil pump |
2. |
Alternator |
3. |
Drive belt auto-tensioner |
|
4. |
Crankshaft pulley |
5. |
A/C compressor |
6. |
Idler pulley |
|
7. |
Drive belt |
8. |
Idler pulley |
|
|
|
A. |
Possible use range |
B. |
Range when new drive belt is installed |
C. |
Indicator |
|
D. |
View D |
|
|
|
|
Checking
■ WARNING ■
Be sure to perform the this step when engine is stopped.
- Check that the indicator (C) (notch on fixed side) of drive belt auto-tensioner is within the possible use range (A).NOTE：
- Check the drive belt auto-tensioner indication when the engine is cold.
- When new drive belt is installed, the indicator (notch on fixed side) should be within the range (B) in the figure.
- Check the drive belt auto-tensioner indication when the engine is cold.
- Visually check entire drive belt for wear, damage or cracks.
- If the indicator (notch on fixed side) is out of the possible use range or belt is damaged, replace drive belt.
