AIR PUMP CLEANER
ENGINE MAINTENANCE
|

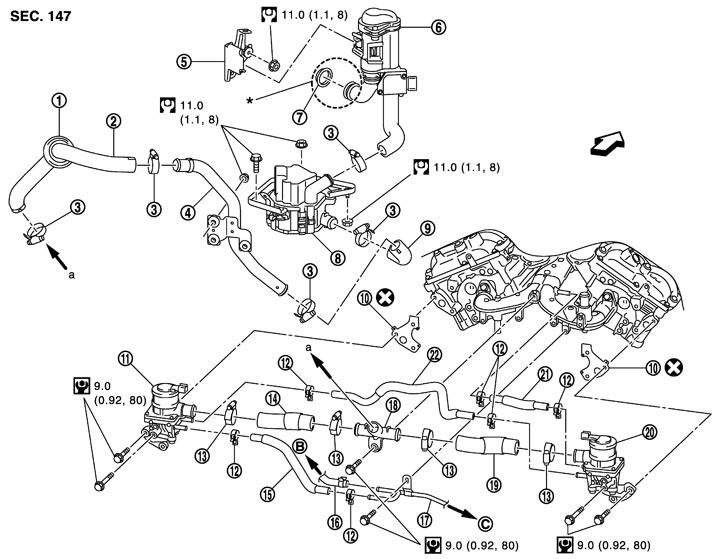

1. |
Rubber |
2. |
Air pump hose |
3. |
Clamp |
|
4. |
Air pump pipe |
5. |
Air pump cleaner bracket |
6. |
Air pump cleaner assembly |
|
7. |
Collar |
8. |
Air pump assembly |
9. |
Air pump hose |
|
10. |
Gasket |
11. |
Air cut solenoid valve (bank 2) |
12. |
Clamp |
|
13. |
Clamp |
14. |
Air hose |
15. |
Water hose |
|
16. |
Water hose |
17. |
Water outlet tube |
18. |
3-WAY hose connector |
|
19. |
Air hose |
20. |
Air cut solenoid valve (bank 1) |
21. |
Water hose |
|
22. |
Water hose |
|
|
|
|
|
B. |
To heater pipe |
C. |
To exhaust manifold and turbocharger assembly (bank 1) |
|
|
|
: Engine front |
|
|
|
|
|
Refer to Components for symbols in the figure. |
|||||
■ CAUTION ■
An air cut solenoid valve malfunction may cause a backflow of exhaust gas. Therefore, install pipes with the utmost caution. Special cautions are required for installing the parts marked with an asterisk (*) shown in the exploded view. (Check that the collar pawl is thoroughly fit.)
