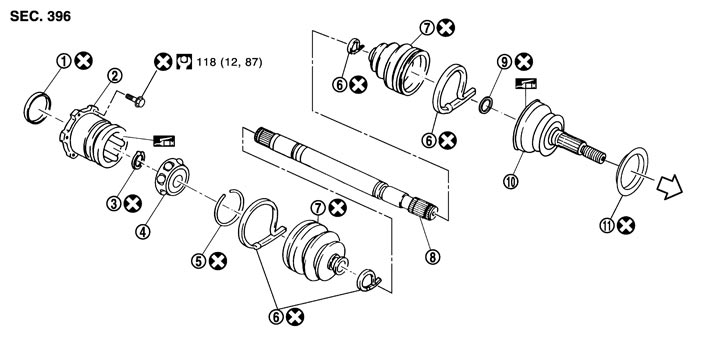

1.
Plug
2.
Housing
3.
Snap ring
4.
Ball cage/steel ball/inner race assembly
5.
Stopper ring
6.
Boot band
7.
Boot
8.
Shaft
9.
Circular clip
10.
Joint sub-assembly
11.
Dust shield


: Wheel side




: NISSAN genuine grease or an equivalent.
Refer to Components for symbols not described on the above.
