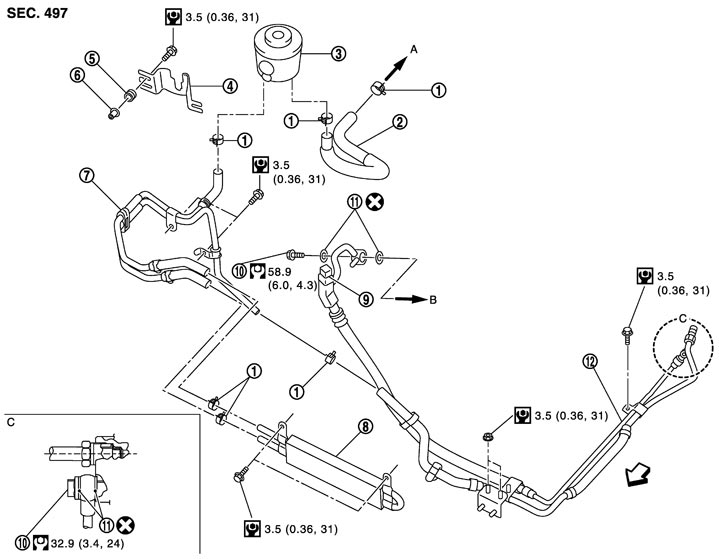

1.
|
Clamp
|
2.
|
Suction hose
|
3.
|
Reservoir tank
|
4.
|
Reservoir tank bracket
|
5.
|
Bushing
|
6.
|
Collar
|
7.
|
Return hose
|
8.
|
Oil cooler
|
9.
|
Pressure sensor
|
10.
|
Eye bolt
|
11.
|
Copper washer
|
12.
|
High pressure piping and low pressure piping
|
A.
|
To power steering oil pump suction piping.
|
B.
|
To power steering oil pump.
|
 : Vehicle front
|
Refer to Components for symbols in the figure.
|
|
