TOE-IN

    1.Remove rear diffuser. Refer to Exploded View.

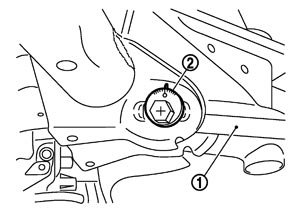

    2.Adjust using the adjust bolt (2) of rear lower link (1).

    Standard

    Toe-in
    		: Refer to Wheel Alignment.

    ■ CAUTION ■
    • Always evenly adjust both toe-in alternately and adjust the difference between the left and right to the standard.
    • Always hold the adjust bolt firmly when tightening nut.


 CAMBER

    1.Remove rear diffuser. Refer to Exploded View.

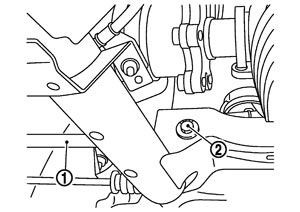

    2.Adjust using the adjust bolt (2) of front lower link (1).

    Standard

    Camber
    		: Refer to Wheel Alignment.

    ■ CAUTION ■
    • Always hold the adjust bolt firmly when tightening nut.
    • Always check toe-in after adjusting camber.
