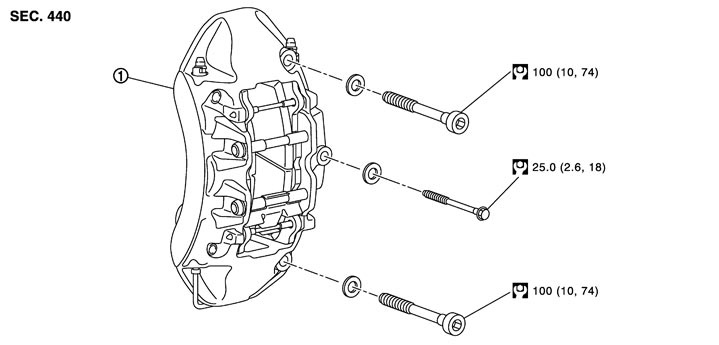

REMOVAL
1.
Caliper assembly
Refer to
Components
for the symbols in the figure.

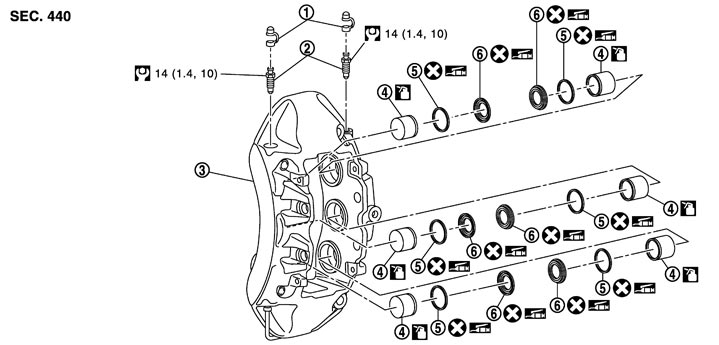

DISASSEMBLY
1.
Cap
2.
Bleeder valve
3.
Caliper
4.
Piston
5.
Piston seal
6.
Piston boot
: Apply rubber grease.
: Apply brake fluid.
Refer to
Components
for symbols not described on the above.
