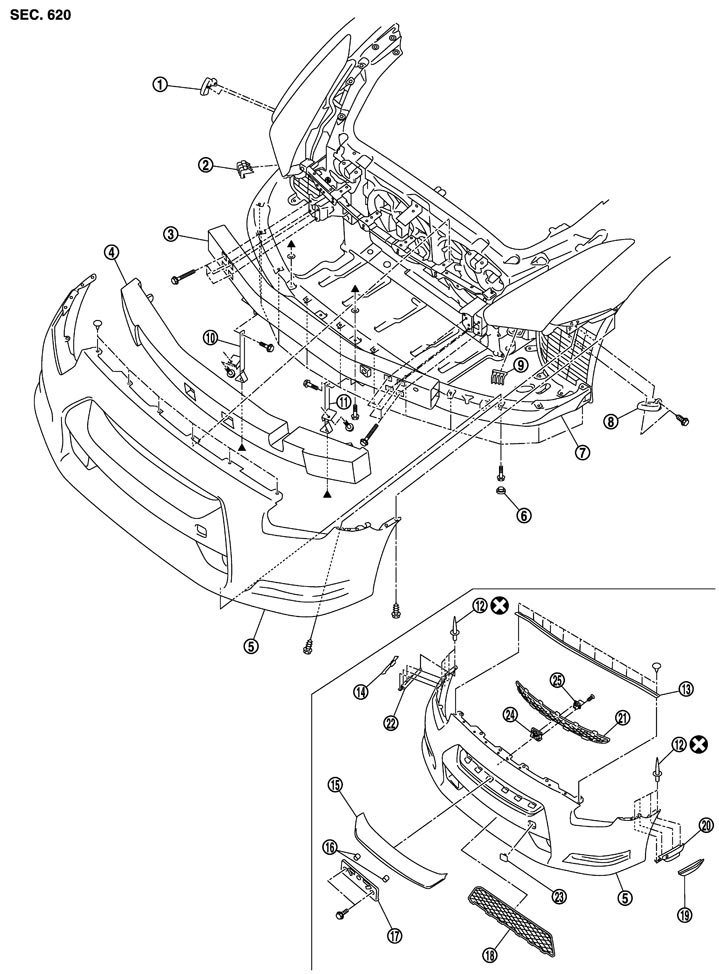

1.
|
Bumper side stiffener RH
|
2.
|
Bumper side bracket clip RH
|
3.
|
Bumper reinforcement
|
4.
|
Energy absorber
|
5.
|
Bumper fascia
|
6.
|
Hole cover
|
7.
|
Engine undercover
|
8.
|
Bumper side stiffener LH
|
9.
|
Bumper side bracket clip LH
|
10.
|
Bumper bracket RH
|
11.
|
Bumper bracket LH
|
12.
|
Rivet
|
13.
|
Hood seal assembly (front)
|
14.
|
Side turn signal lamp RH
|
15.
|
Front bumper finisher A
|
16.
|
Blind nut
|
17.
|
License plate bracket
|
18.
|
Front bumper grille
|
19.
|
Side turn signal lamp LH
|
20.
|
Bumper side bracket LH
|
21.
|
Front bumper finisher B
|
22.
|
Bumper side bracket RH
|
23.
|
Bumper bracket cover
|
24.
|
Front emblem
|
25.
|
Front emblem bracket
|
|
|
|
|
Refer to Components for symbols in the figure.
|
|
