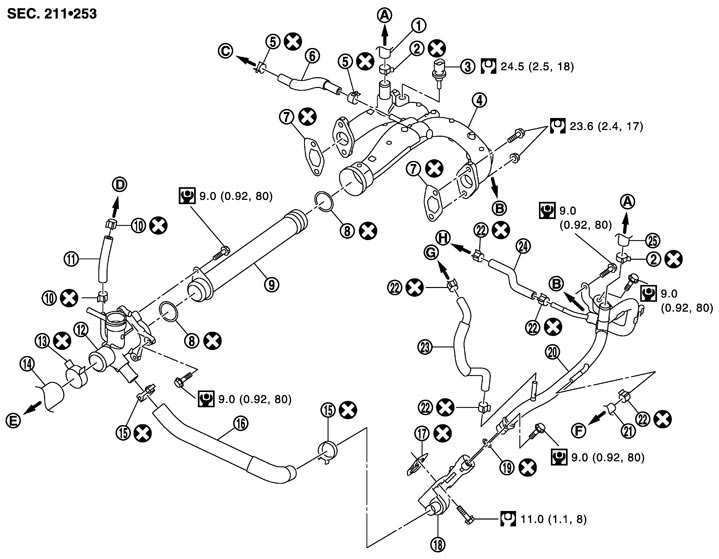

1.
|
Heater hose
|
2.
|
Clamp
|
3.
|
Engine coolant temperature sensor
|
4.
|
Water outlet (rear)
|
5.
|
Clamp
|
6.
|
Water hose
|
7.
|
Gasket
|
8.
|
O‐ring
|
9.
|
Water outlet pipe
|
10.
|
Clamp
|
11.
|
Water hose
|
12.
|
Water outlet (front)
|
13.
|
Clamp
|
14.
|
Radiator hose (upper)
|
15.
|
Clamp
|
16.
|
Water bypass hose
|
17.
|
Gasket
|
18.
|
Water connector
|
19.
|
O‐ring
|
20.
|
Heater pipe
|
21.
|
Water hose
|
22.
|
Clamp
|
23.
|
Water hose
|
24.
|
Water hose
|
25.
|
Heater hose
|
|
|
|
|
A.
|
To heater core
|
B.
|
To heat exchanger
|
C.
|
To air cut solenoid valve (bank 1)
|
D.
|
To electric throttle control actuator (bank 1)
|
E.
|
To radiator
|
F.
|
To turbocharger (bank 2)
|
G.
|
To electric throttle control actuator (bank 2)
|
H.
|
To turbocharger (bank 1)
|
|
|
Refer to Components for symbols in the figure.
|
