The actual shapes of Kent‐Moore tools may differ from those of special service tools illustrated here.

HFC-134a (R-134a) Service Tool and Equipment
  • Never mix HFC‐134a (R‐134a) refrigerant and/or its specified lubricant with CFC‐12 (R‐12) refrigerant and/or its lubricant.
  • Separate and non‐interchangeable service equipment must be used for handling each type of refrigerant/lubricant.
  • Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles refrigerant and/or lubricant) are different between CFC‐12 (R‐12) and HFC‐134a (R‐134a). This is to avoid mixed use of the refrigerants/lubricant.
  • Never use adapters that convert one size fitting to another: refrigerant/lubricant contamination occurs and compressor malfunction may result.

Tool number
(Kent‐Moore No.)
Tool name
Description
9253089908 (for high‐pressure pipe 1)
(‐)
9253089912 (for high‐pressure flexible hose)
(‐)
9253089916 (for low‐pressure pipe 2 and low‐pressure flexible hose)
(‐)

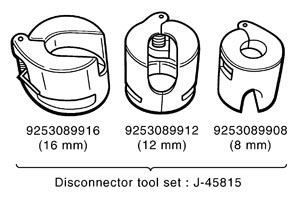

Disconnector tool set
(J‐45815)

Disconnect one‐touch joint connection
(ACR2005‐NI)

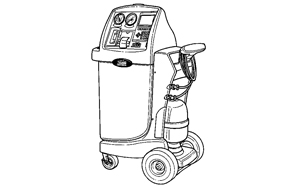

ACR5 A/C Service Center

Function: Refrigerant recovery, recycling and recharging
(J‐41995)
Electrical leak detector

Power supply:
DC 12 V (Battery terminal)
(J‐43926)

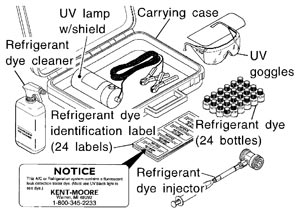

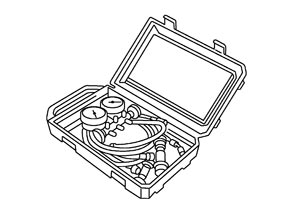

Refrigerant dye leak detection kit
Kit includes:
(J‐42220)
UV lamp and UV safety goggles
(J‐41459)
HFC‐134a (R‐134a) dye injector
Use with J‐41447, 1/4 ounce bottle
(J‐41447)

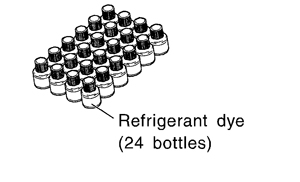

HFC‐134a (R‐134a) fluorescent leak detection dye
(Box of 24, 1/4 ounce bottles)
(J‐43872)
Refrigerant dye cleaner

Power supply:
DC 12 V (Battery terminal)
(J‐42220)
UV lamp and UV safety goggles

Power supply:
DC 12 V (Battery terminal)
For checking refrigerant leakage when fluorescent dye is equipped in A/C system
Includes:
UV lamp and UV safety goggles
(J‐41447)
HFC‐134a (R‐134a) fluorescent leak detection dye
(Box of 24, 1/4 ounce bottles)


Application:
For HFC‐134a (R‐134a) PAG oil
Container:
1/4 ounce (7.4 cc) bottle
(Includes self‐adhesive dye identification labels for affixing to vehicle after charging system with dye.)
(J‐41459)

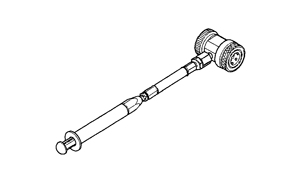

HFC‐134a (R‐134a) dye injector
Use with J‐41447, 1/4 ounce bottle

For injecting 1/4 ounce of fluorescent leak detection dye into A/C system
(J‐43872)
Refrigerant dye cleaner

For cleaning dye spills
(J‐39183)
Manifold gauge set (with hoses and couplers)

Identification:
  • The gauge face indicates HFC‐134a (R‐134a).
Fitting size: Thread size
  • 1/2″‐16 ACME
Service hoses
  • High‐pressure side hose
    (J‐39501‐72)
  • Low‐pressure side hose
    (J‐39502‐72)
  • Utility hose
    (J‐39476‐72)

Hose color:
  • Low‐pressure side hose: Blue with black stripe
  • High‐pressure side hose: Red with black stripe
  • Utility hose: Yellow with black stripe or green with black stripe
Hose fitting to gauge:
  • 1/2″‐16 ACME
Service couplers
  • High‐pressure side coupler
    (J‐39500‐20)
  • Low‐pressure side coupler
    (J‐39500‐24)

Hose fitting to service hose:
M14 x 1.5 fitting is optional or permanently attached.
(J‐39650)

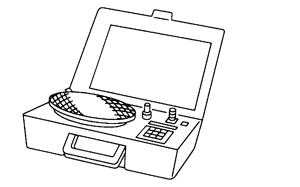

Refrigerant weight scale

For measuring of refrigerant
Fitting size: Thread size
1/2″‐16 ACME
(J‐39649)

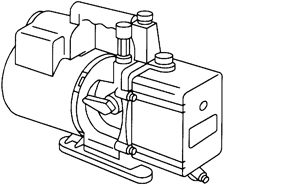

Vacuum pump
(Including the isolator valve)

Capacity:
  • Air displacement: 4 CFM
  • Micron rating: 20 microns
  • Oil capacity: 482 g (17 oz.)
Fitting size: Thread size
  • 1/2″‐16 ACME
