REMOVAL

 Driver Side

    1.Set the temperature (driver side) at 18.0°C (60°F).
    2.Disconnect the battery cable from the negative terminal.
    ■ CAUTION ■
    The angle may be out, when installing the air mix door actuator to the air mix door, unless the above 2 procedures are performed.
    3.Remove instrument lower panel (driver). Refer to Exploded View.
    4.Remove mounting screws (A), and then remove air mix door motor (driver side) (1).
    5.Disconnect air mix door motor (driver side) connector.

 Passenger Side

    1.Set the temperature (passenger side) at 18.0°C (60°F).
    2.Disconnect the battery cable from the negative terminal.
    ■ CAUTION ■
    The angle may be out, when installing the air mix door actuator to the air mix door, unless the above 2 procedures are performed.
    3.Remove instrument lower panel (assist). Refer to Exploded View.

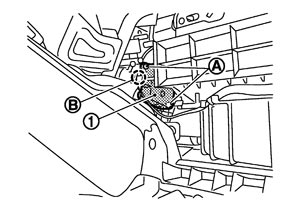

    4.Remove mounting screws (A), and then remove air mix door motor (passenger side) (1).
    5.Disconnect air mix door motor (passenger side) connector (B).

 INSTALLATION

Installation is basically the reverse order of removal.
