Only when pressing the request switch, it is possible to lock and unlock the door by carrying the Intelligent Key.
OPERATION DESCRIPTION
- When the BCM detects that each door request switch is pressed, it activates the outside key antenna and inside key antenna corresponding to the pressed door request switch and transmits the request signal to the Intelligent Key. And then, check that the Intelligent Key is near the door.
- If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and transmits the key ID signal to the BCM via remote keyless entry receiver.
- BCM receives the key ID signal and compares it with the registered key ID.
- BCM lock/unlock each door and sounds Intelligent Key warning buzzer (lock: 2 time, unlock: 1 times) at the same time as a reminder.
OPERATION CONDITION
If the following conditions are satisfied, door lock/unlock operation is performed when the request switch is operated.
Each request switch operation
| Operation condition
|
Lock operation
| - All doors are closed
- Intelligent Key is outside the vehicle
- Intelligent Key is within outside key antenna detection area
|
Unlock Operation
| - Intelligent Key is outside the vehicle
- Intelligent Key is within outside key antenna detection area *
|
*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare Intelligent Key as long as key IDs are different.
OUTSIDE KEY ANTENNA DETECTION AREA

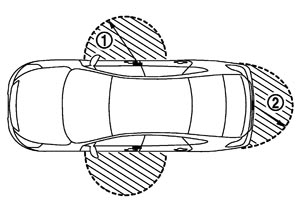

The outside key antenna detection area of door lock/unlock function is in the range of approximately 80 cm (31.50 in) surrounding the driver and passenger door handles and (1) and trunk lid opener request switch (2). However, this operating range depends on the ambient conditions.
SELECTIVE UNLOCK FUNCTION
When an LOCK signal is sent from door request switch (driver side or passenger side), all doors and fuel lid will be locked.
When an UNLOCK signal is sent from door request switch (driver side or passenger side) once, driver's door and fuel lid will be unlocked.
Then, if an UNLOCK signal is sent from door request switch (driver side or passenger side) again within 60 seconds, all other door will be unlocked.
HAZARD AND BUZZER REMINDER FUNCTION
During lock, unlock, operation by each request switch, the hazard warning lamps and Intelligent Key warning buzzer will blink or honk as a reminder.
When doors are locked, unlocked by each request switch, BCM honks Intelligent Key warning buzzer as a reminder and blinks.
Operating Function of Hazard and Buzzer Reminder
Operation
| Hazard warning lamp flash
| Intelligent Key warning buzzer honk
|
Unlock
| Once
| Once
|
Lock
| Twice
| Twice
|
How to Change Hazard and Buzzer Reminder Mode
AUTO DOOR LOCK FUNCTION
When all doors are locked, ignition switch is in OFF position and key switch is OFF (Intelligent Key is not inserted in key slot). Doors are unlocked with door request switch.
When BCM does not receive the following signals within 60 seconds, all doors are locked.
- Door switch is ON (door is opened)
- Door is locked
- Ignition switch is ON (ignition switch is pressed)
Auto door lock mode can be changed by “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to
CONSULT-III Function (BCM - INTELLIGENT KEY).
LIST OF OPERATION RELATED PARTS
The operation related parts are marked with ×.
Door lock function
| Intelligent Key
| Key slot
| Remote keyless entry receiver
| Door switch
| Door request switch
| Door lock actuator
| Inside key antenna
| Outside key antenna
| Intelligent Key warning buzzer
| CAN communication system
| BCM
| Hazard warning lamp
| Push-button ignition switch
| Combination meter
|
Door lock/unlock function by request switch
| ×
| ×
| ×
| ×
| ×
| ×
| ×
| ×
|
|
| ×
|
|
|
|
Hazard and buzzer reminder function for door lock/unlock operation
|
|
|
|
|
|
|
|
| ×
| ×
| ×
| ×
|
| ×
|
Key reminder function
| ×
| ×
| ×
| ×
| ×
| ×
| ×
| ×
| ×
|
| ×
| ×
|
|
|
Auto door lock function
| ×
| ×
|
| ×
| ×
| ×
|
|
|
|
| ×
|
| ×
|
|
