Once one of the following conditions below is established, alert or warning will be executed.
Warning/Information functions
| Operation procedure
|
Intelligent Key system malfunction
| When a malfunction is detected in BCM, “KEY” warning lamp will illuminate.
|
OFF position warning
| For internal
| - Ignition switch: ACC position.
- Door switch (driver side): ON (Door is open).
|
For external
| OFF position warning (for internal) is in active mode, driver side door is closed.
NOTE： OFF position (for external) active only when each of the sequence has occurred as per the following: P position warning → ACC warning → OFF position warning (for internal) → OFF position warning (for internal)
|

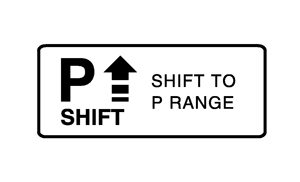

P position warning
| - Shift position: Any position except the P position.
- Engine is running to stopped (ignition switch is ON to OFF).
|
ACC warning
| - When P position warning is in active mode, shift position changes from the P position.
- Ignition switch: ACC position.
|
Take away warning
| Door is open to close
| - Ignition switch: Any position except the LOCK position.
- Door switch: ON to OFF (door is open to close).
- Intelligent Key can not be detected inside the vehicle.
|
Door is open
| - Door switch: ON (door is open).
- Key ID verification every 5 seconds when registered Intelligent Key can not be detected inside the vehicle.
|
Push button-ignition switch operation
| - Ignition switch: Any position except the LOCK position.
- Press push-button ignition switch.
- Intelligent Key can not be detected inside the vehicle.
|

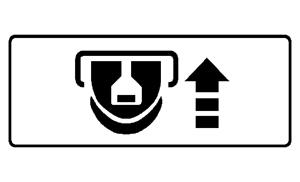

Intelligent Key is removed from key slot
| When Intelligent Key is removed from key slot, Intelligent Key can not be detected inside the vehicle.
|
Door lock operation warning
| Request switch operation
| When request switch is pushed (lock operation) under the following conditions.
- All doors are closed.
- All doors are unlocked.
- Intelligent Key is inside vehicle.
|
Intelligent Key button operation
| When Intelligent Key button is pushed (lock operation) under the following conditions.
- Door switch: ON (any door is open).
- For 3 seconds after Intelligent Key is removed from key slot.
|
Key warning
| - Ignition switch is in the OFF position.
- Driver side door switch: ON (driver side door is open).
- Intelligent Key is inserted in key slot.
|

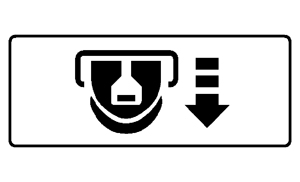

Intelligent Key insert information
| - Door switch: ON to OFF (door is open to close).
- Ignition switch: OFF to ON position.
- Intelligent Key is out of key slot.
- Intelligent Key can not be detected inside the vehicle.
|

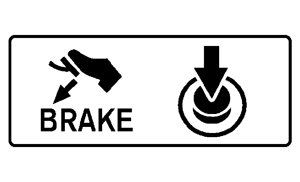

Engine start information
| Ignition switch is in the ON position
| - Ignition switch: ON position.
- Shift position: P position.
- Engine is stopped.
|

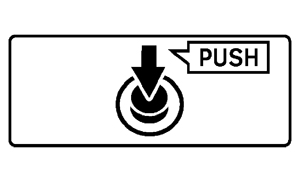

Ignition switch is in any position except the ON position
| - Ignition switch: Any position except the ON position.
- Shift position: P position.
- Intelligent Key is inserted in key slot or Intelligent Key can be detected inside the vehicle.
|

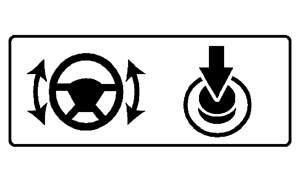

Steering lock information
| When steering lock can not be released after ignition switch is turned ON.
|

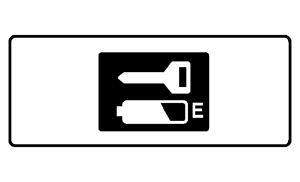

Intelligent Key low battery warning
| When Intelligent Key is battery low, BCM is detected after ignition switch is turned ON.
|

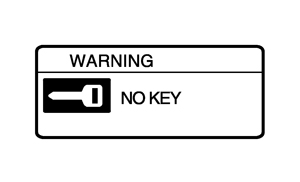

Key ID warning
| When registered Intelligent Key can not be detected inside the vehicle after ignition switch is turned ON.
|
