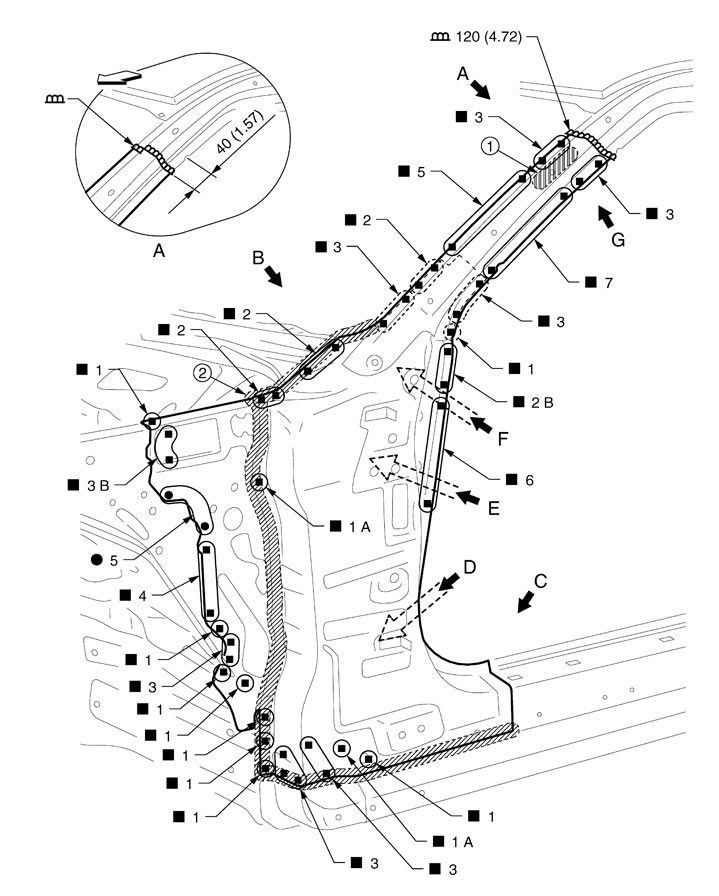

Work after hoodledge reinforcement is removed.
■ CAUTION ■
Create the reinforcement sheet from the redundant area of service parts for butt welding area. Weld the reinforcing sheet on the back of butt welding area, and then perform butt welding.
1.
| Urethane foam
| 2.
| Body sealing
|
|
|
Unit: mm (in)
|
|
|
|
|
| : Vehicle front
|
|
|
|
|
Replaced parts
|
•
| Side body assembly (LH)
| •
| Upper rear hoodledge (LH)
| •
| Inner side roof rail
|
Unit: mm (in)
|
|
|
|
|
| : Vehicle front
|
|
|
|
|

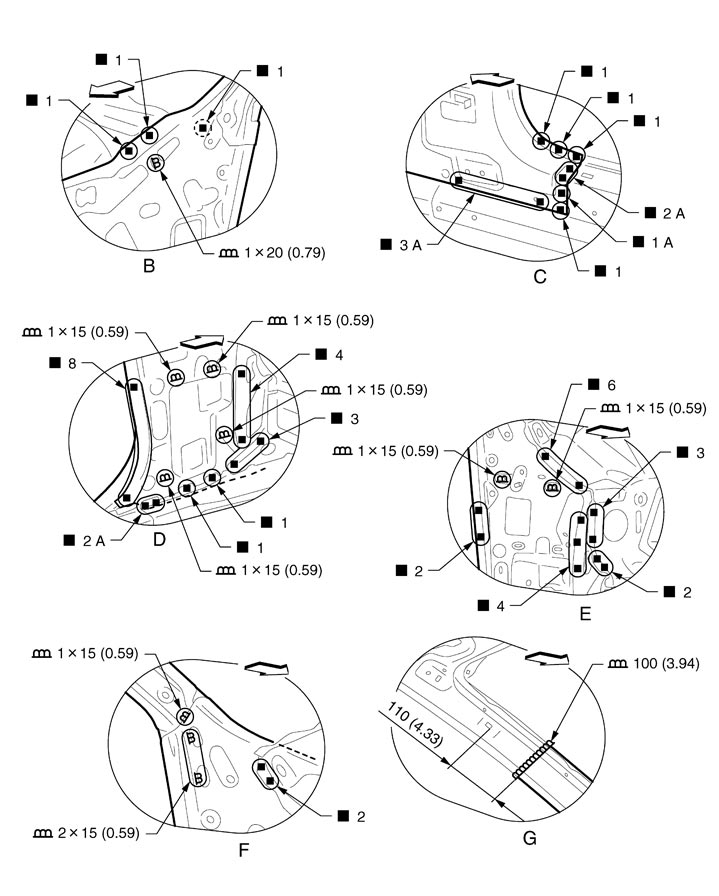

View B: Before installing side body assembly
