■ CAUTION ■
Create the reinforcement sheet from the redundant area of service parts for butt welding area. Weld the reinforcing sheet on the back of butt welding area, and then perform butt welding.
1.
|

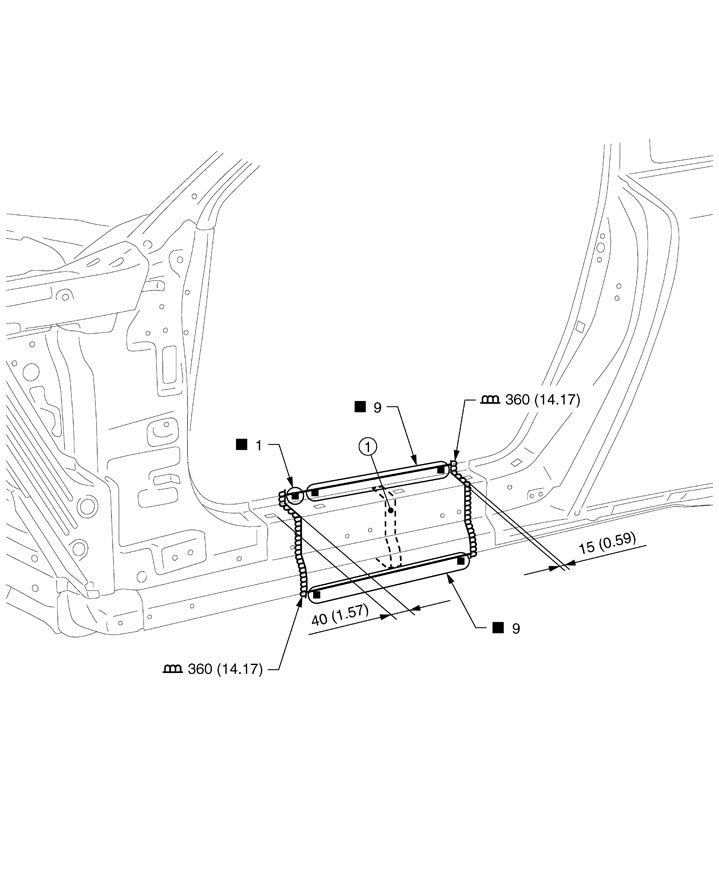

Outer sill brace
|
|
|
|
|
Unit: mm (in)
|
|
|
|
|
Replacement parts
|
•
|
Outer sill reinforcement (LH)
|
|
|
|
|
|
