Work after hoodledge reinforcement, rear fender, and lock pillar reinforcement are removed.
Remove the front pillar brace (reusable).
1.
| Outer sill brace
| 2.
| Urethane foam
| 3.
| Body sealing
|
Unit: mm (in)
|
|
|
|
|
| : Vehicle front
|
|
|
|
|
Replacement parts
|
•
| Outer sill reinforcement (LH)
|
|
|
|
|

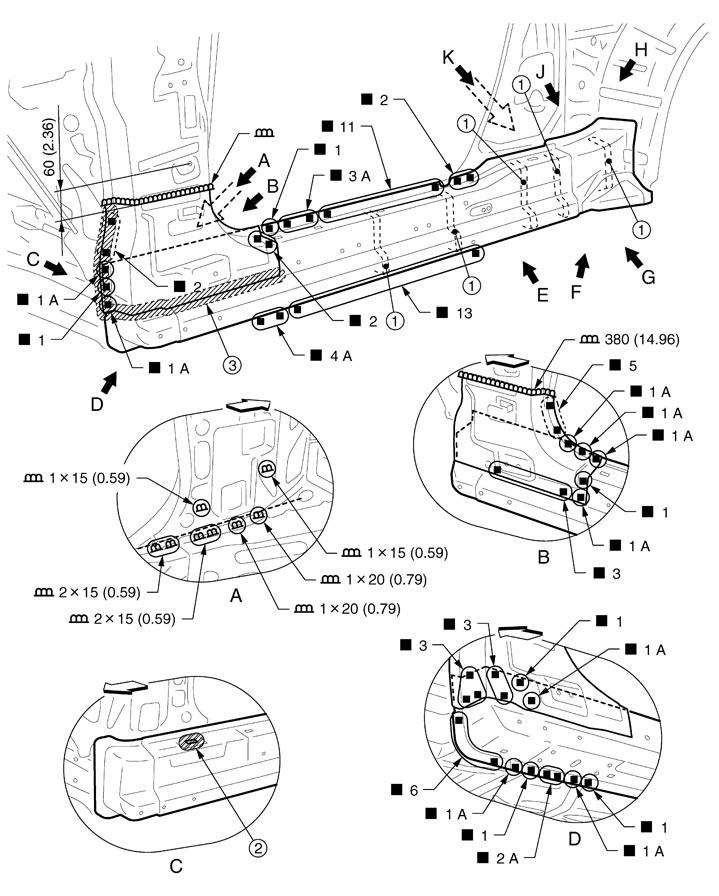

View C: Before installing front pillar brace
1.
| Urethane foam
|
|
|
|
|
Unit: mm (in)
|
|
|
|
|
| : Vehicle front
|
|
|
|
|

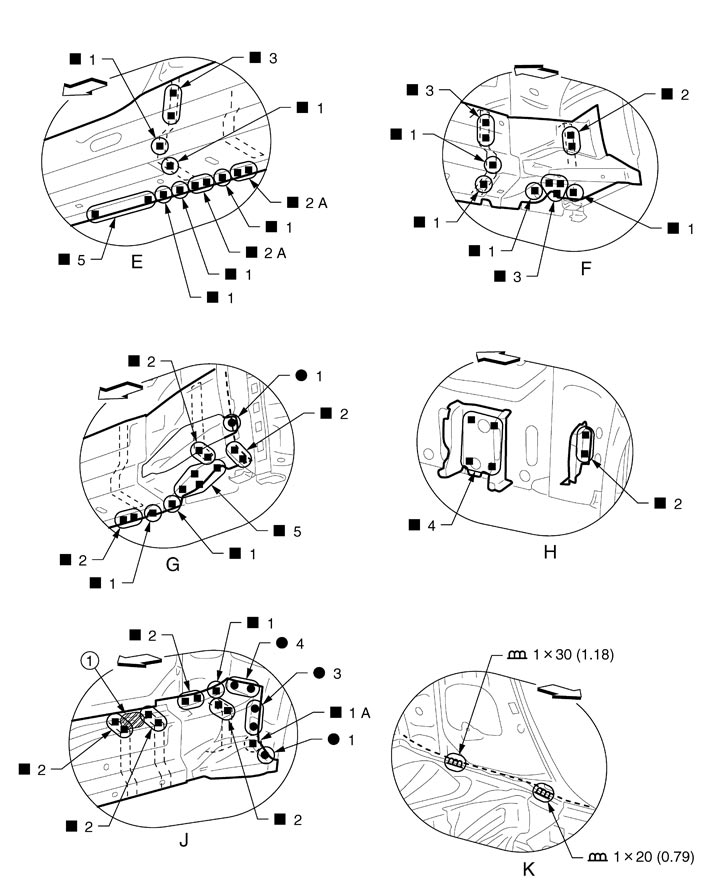

View H: Before installing outer sill reinforcement
