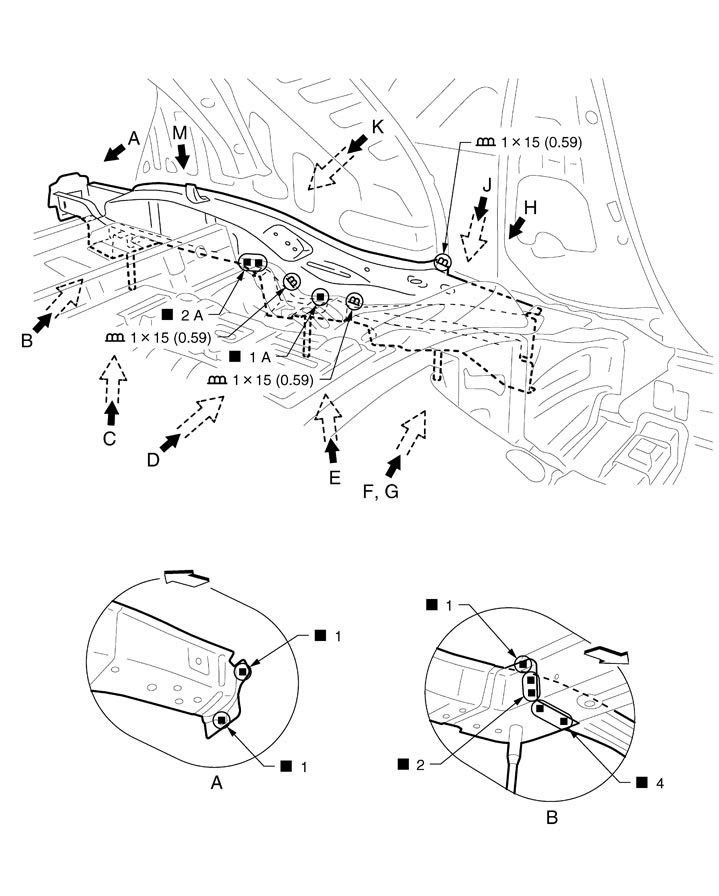

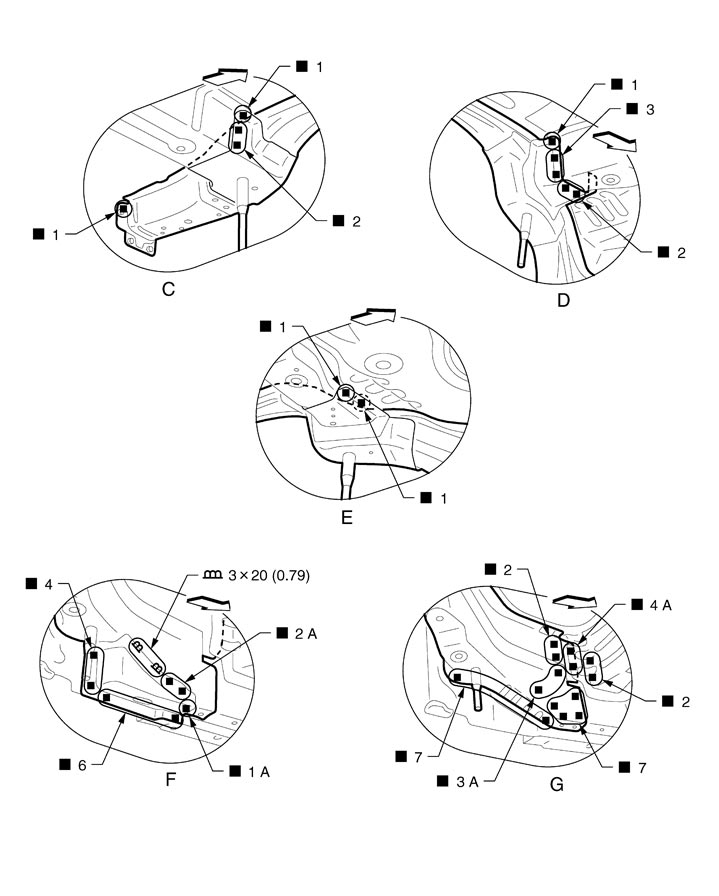

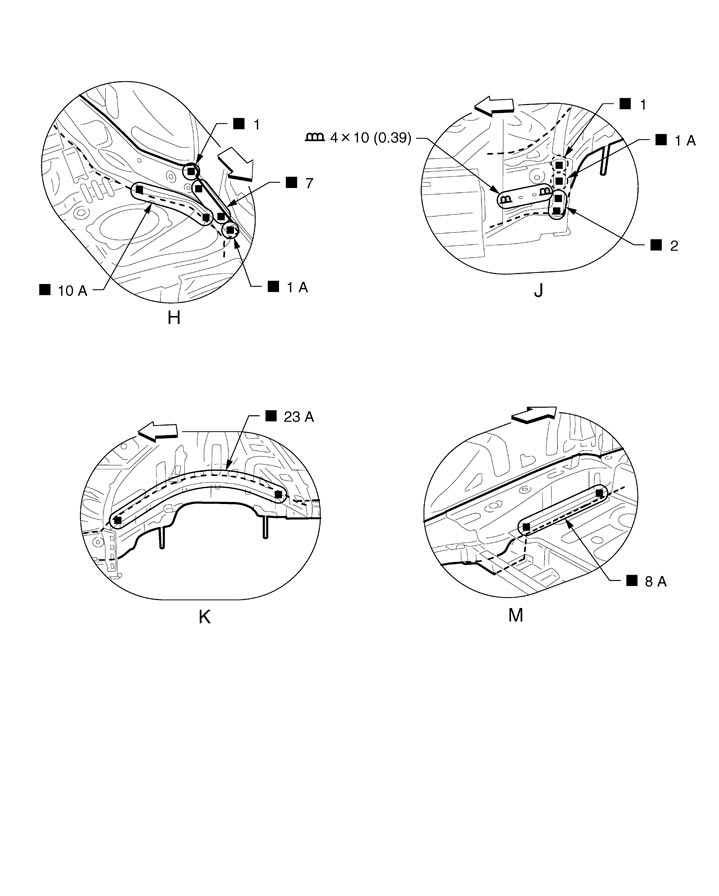

Work after rear fender, rear panel, rear floor rear, rear floor side, lock pillar reinforcement, and outer rear wheelhouse are removed.

Unit: mm (in)
	: Vehicle front
Replacement parts
•	Rear side member assembly (LH)

Unit: mm (in)
	: Vehicle front

View G: Before installing jack mounting bracket

Unit: mm (in)
	: Vehicle front
