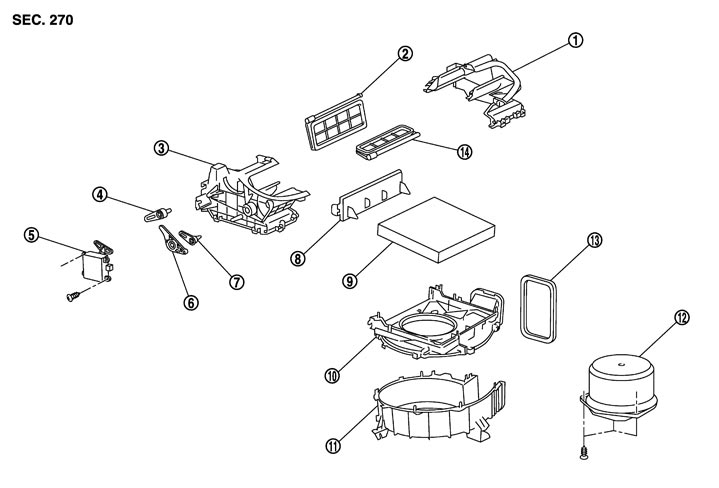

1.
|
Intake box RH
|
2.
|
Intake door 2
|
3.
|
Intake box LH
|
4.
|
Intake door lever 2
|
5.
|
Intake door motor
|
6.
|
Intake door link
|
7.
|
Intake door lever 1
|
8.
|
Filter cover
|
9.
|
In-cabin microfilter
|
10.
|
Intake upper case
|
11.
|
Intake lower case
|
12.
|
Blower motor assembly
|
13.
|
Seal
|
14.
|
Intake door 1
|
|
|
|
