In all 4–speed, 5–speed and 4–wheel drive models the transaxle and drive axle share a common supply of lubricant. On 1970–73 vehicles the lubricant level should be checked at least every 3 months/3000 miles (5000 km), whichever comes first. For 1974–80 models check the level every 6 months/6000 miles (9700 km). On 1981–84 models, check every 6 months/7500 miles (12,000 km).

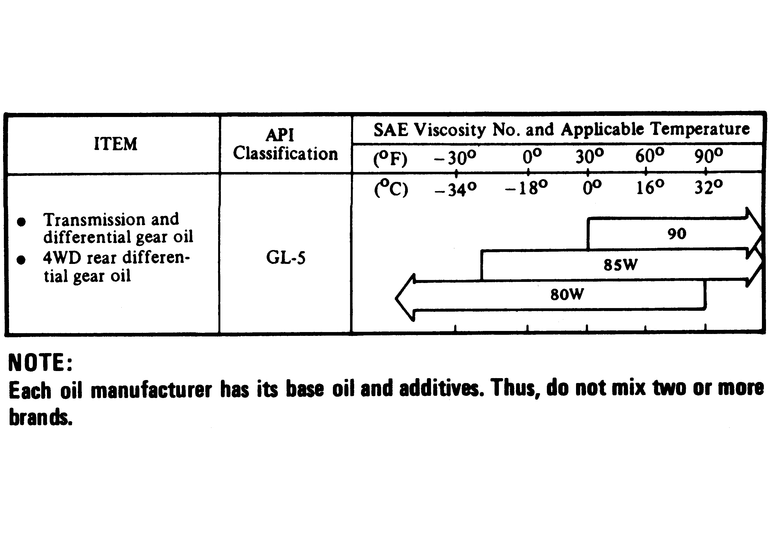

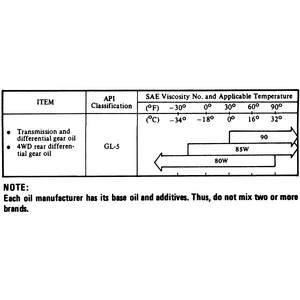

| Fig. 1: Recommended lubricant grades for the manual transaxle
|
Refer to the Capacities chart for the correct amount of lubricant the transaxle and drive axle in your vehicle needs. Use API GL–5 hypoid gear oil of one of the following viscosities:
