ADJUSTMENTS

1. After installing exhaust system parts, check to make sure clearances between parts and car body are at the specified values.
2. If any clearance is not, loosen all connections.
3. Adjust when necessary to obtain proper clearances.
4. Tighten all connections securely.

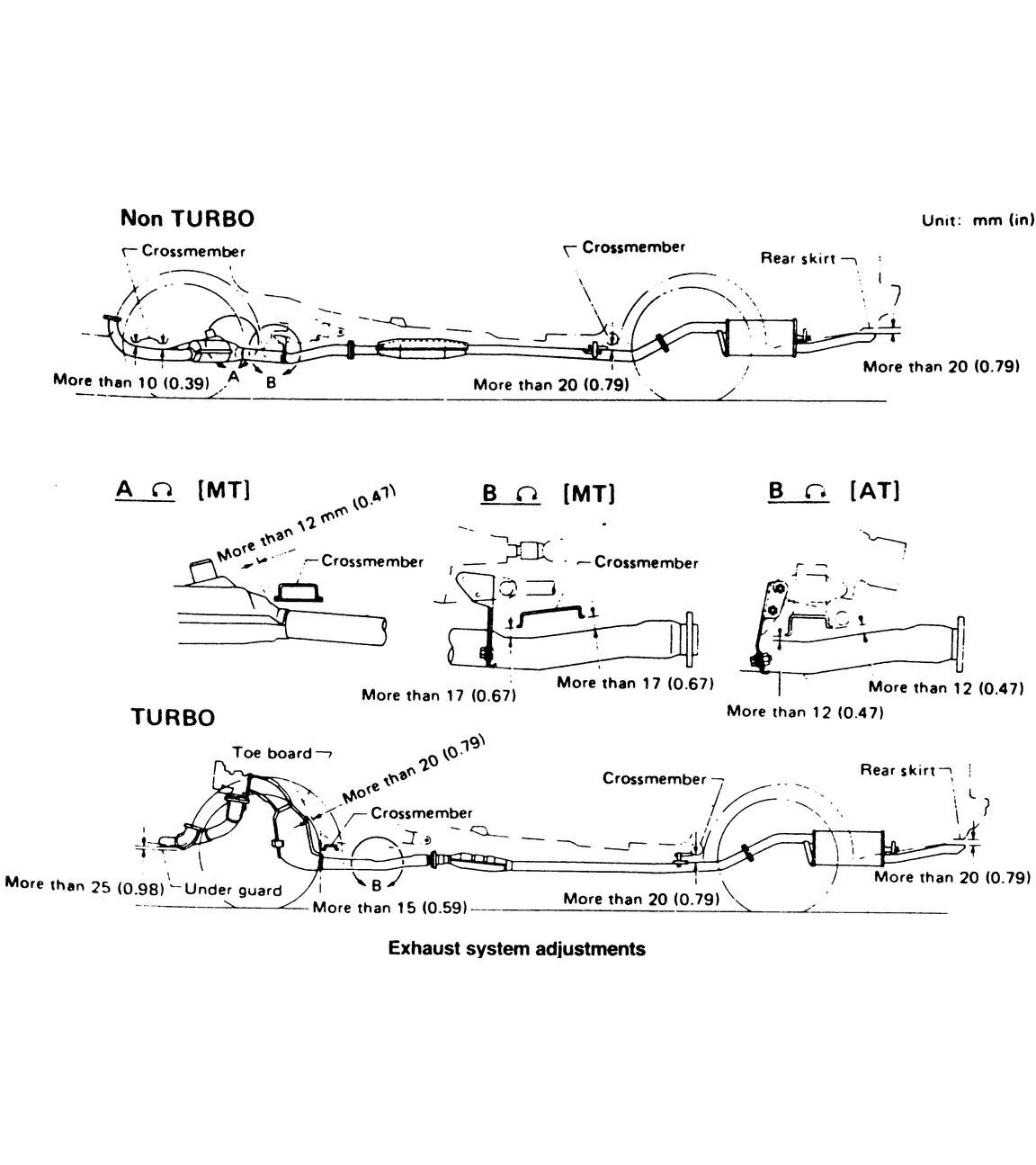

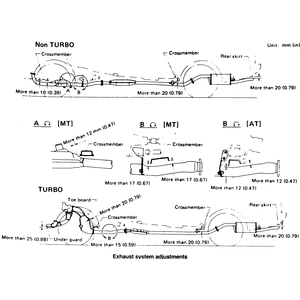

   Fig. 1: Always maintain proper exhaust system clearances
