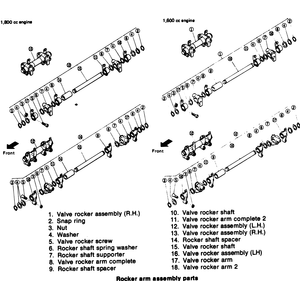

| Fig. 1: Exploded view of the rocker arm assemblies used
on 1600 and 1800 engines
|
Inspect rocker arms for pitting or wear on the valve contact point, or excessive bushing wear. Bushings need only be replaced if wear is excessive, because the rocker arm normally contacts the shaft at one point only. Grind the valve contact point of rocker arm smooth if necessary, removing as little material as possible. If excessive material must be removed to smooth and square the arm, it should be replaced. Clean out all oil holes and passages in rocker shaft. If shaft is grooved or worn, replace it. Lubricate and assemble the rocker shaft.
