REMOVAL & INSTALLATION

1. Disengage the electrical connections.
2. Loosen the coil bracket retaining fasteners.
3. Remove the coil.
4. Installation is the reverse of removal

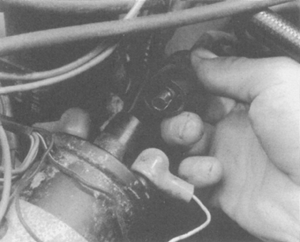

   Fig. 1: Remove the wire from the secondary terminal

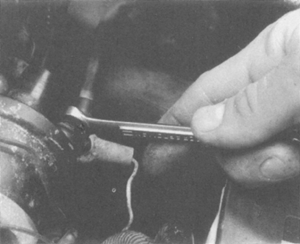

   Fig. 2: Disengage the primary coil electrical connections

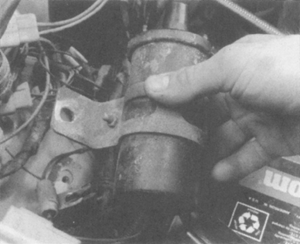

   Fig. 3: Remove the coil from the vehicle
