Removal and installation of the various evaporative emission control system components consists of unfastening hoses, loosening securing screws, and removing the part which is to be replaced from its mounting bracket.
WARNING
When replacing any EEC system hoses, always use hoses that are fuel resistant
or are marked EVAP.

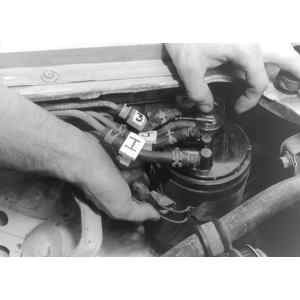

| Fig. 1: Tag and remove the hoses at the canister . .
.
|

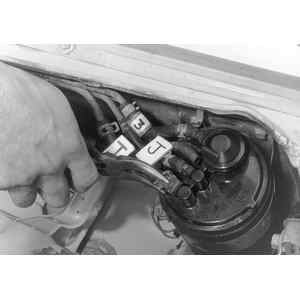

| Fig. 2: . . . then loosen the retaining bracket and remove
the canister from the vehicle
|
