REMOVAL & INSTALLATION

1. Release the fuel system pressure and disconnect the negative battery cable.
2. Keep the fuel pump harness disconnected after releasing the fuel system pressure.
3. Raise and support the vehicle safely.
4. Clamp the middle portion of the thick hose connecting the pipe and the pump to prevent fuel from flowing out of the tank.
5. Loosen the hose clamp and disconnect the hose.
6. Remove the three pump bracket mounting bolts and remove the pump together with the pump damper.

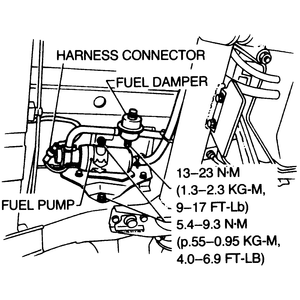

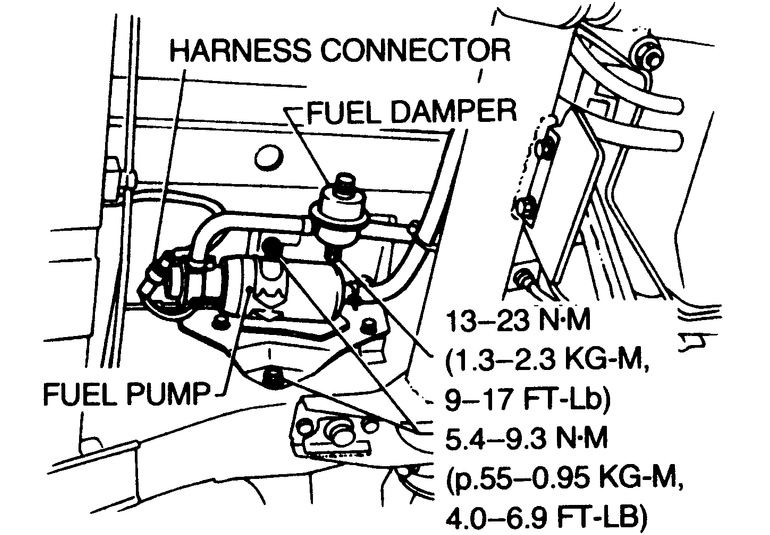

   Fig. 1: Fuel pump and damper on the 1800 Turbo Brat

   To Install:

7. If the pump and damper have been removed from the bracket, reinstall and tighten the bolts securely.
8. Install the hose and tighten the clamp screw to 0.7–1.1 ft. lbs. (1.0–1.5 Nm).
9. Install the pump bracket in position to the vehicle body and secure it with the bolts.

   NOTE: Take care to position the rubber cushion properly.

10. Connect the pump harness connector.
11. Connect the negative battery cable and test the fuel pump for proper operation.

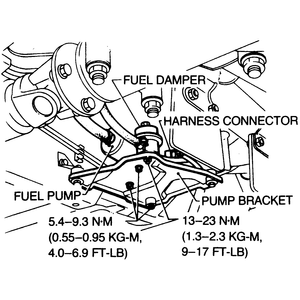

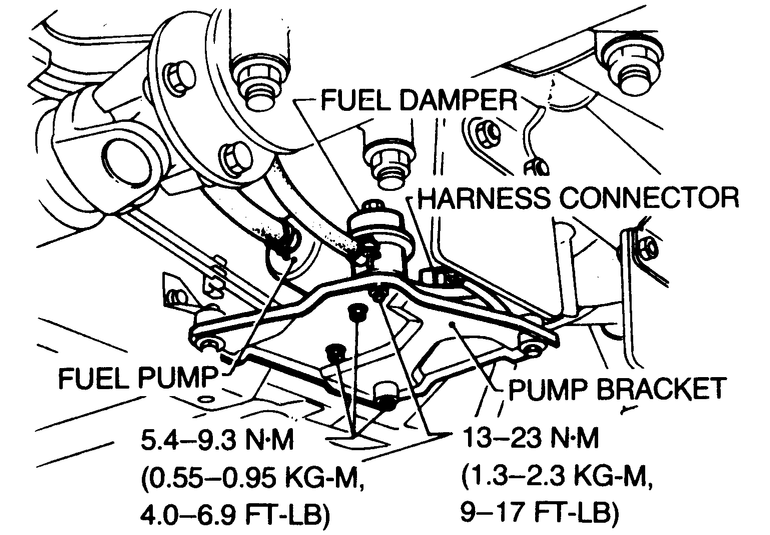

    Fig. 2: Fuel pump and damper on the 1800 Turbo wagon
