Console Box and Handbrake Cover

REMOVAL & INSTALLATION

1. Apply the handbrake lever.
2. Lift the tray while pushing it forward.
3. Remove the screws which hold the handbrake cover and the console box.

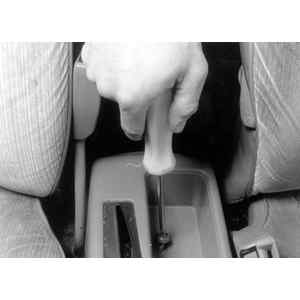

   Fig. 1: Remove the screws securing the handbrake cover . . .

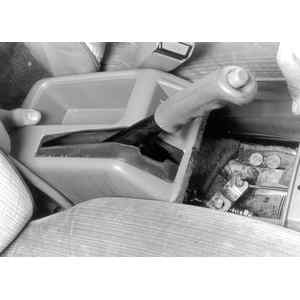

   Fig. 2: . . . then remove the handbrake cover

4. Open the handbrake cover lid. Remove the screws from the bottom of the console box and detach the handbrake cover.
5. Remove the shift knob on manual transaxles.
6. Remove the screws which hold the console box, and detach the console box.
7. Reverse the above procedure to install the console box and handbrake cover. Be careful not to pinch any harnesses during installation.
