Flashers

REPLACEMENT

The turn signal flasher and hazard units are usually located located under the dash either to the left or right of the steering column on most models.

  1. Remove the turn signal flasher unit or hazard unit by pulling them up from the electrical connection.
  2. To install push the unit(s) into the electrical connector.

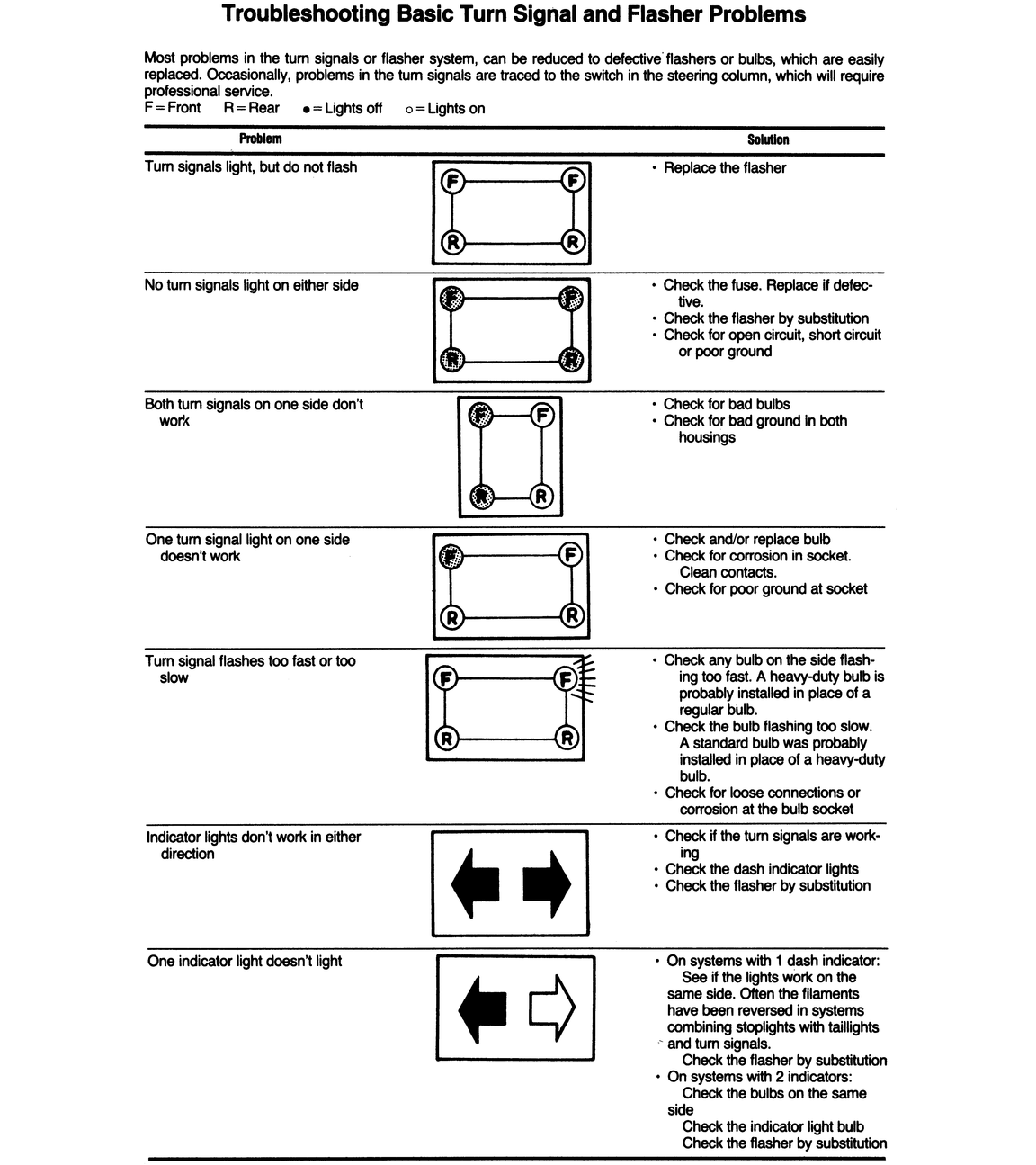

    TROUBLESHOOTING BASIC TURN SIGNAL AND FLASHER PROBLEMS

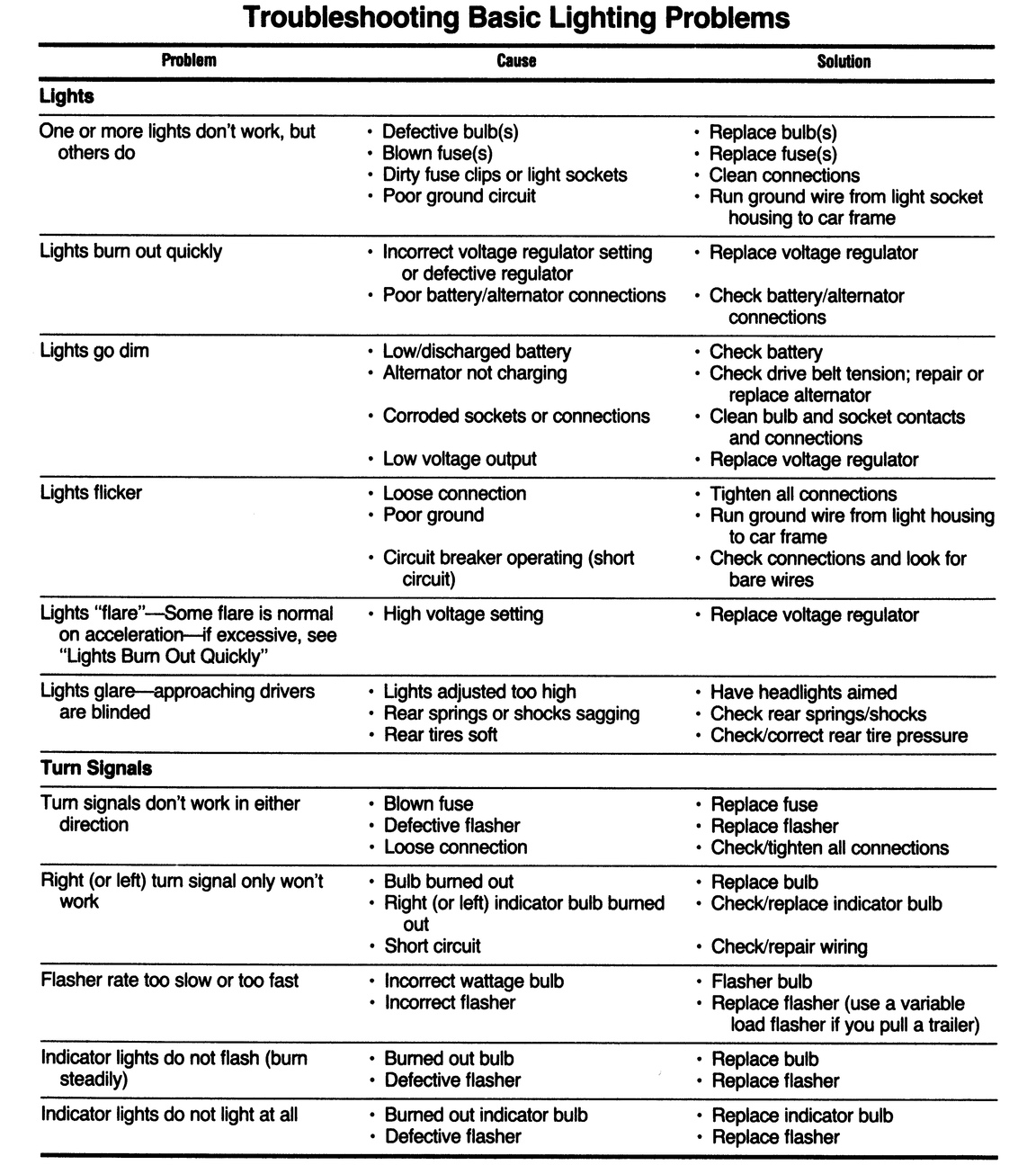

    TROUBLESHOOTING BASIC LIGHTING PROBLEMS

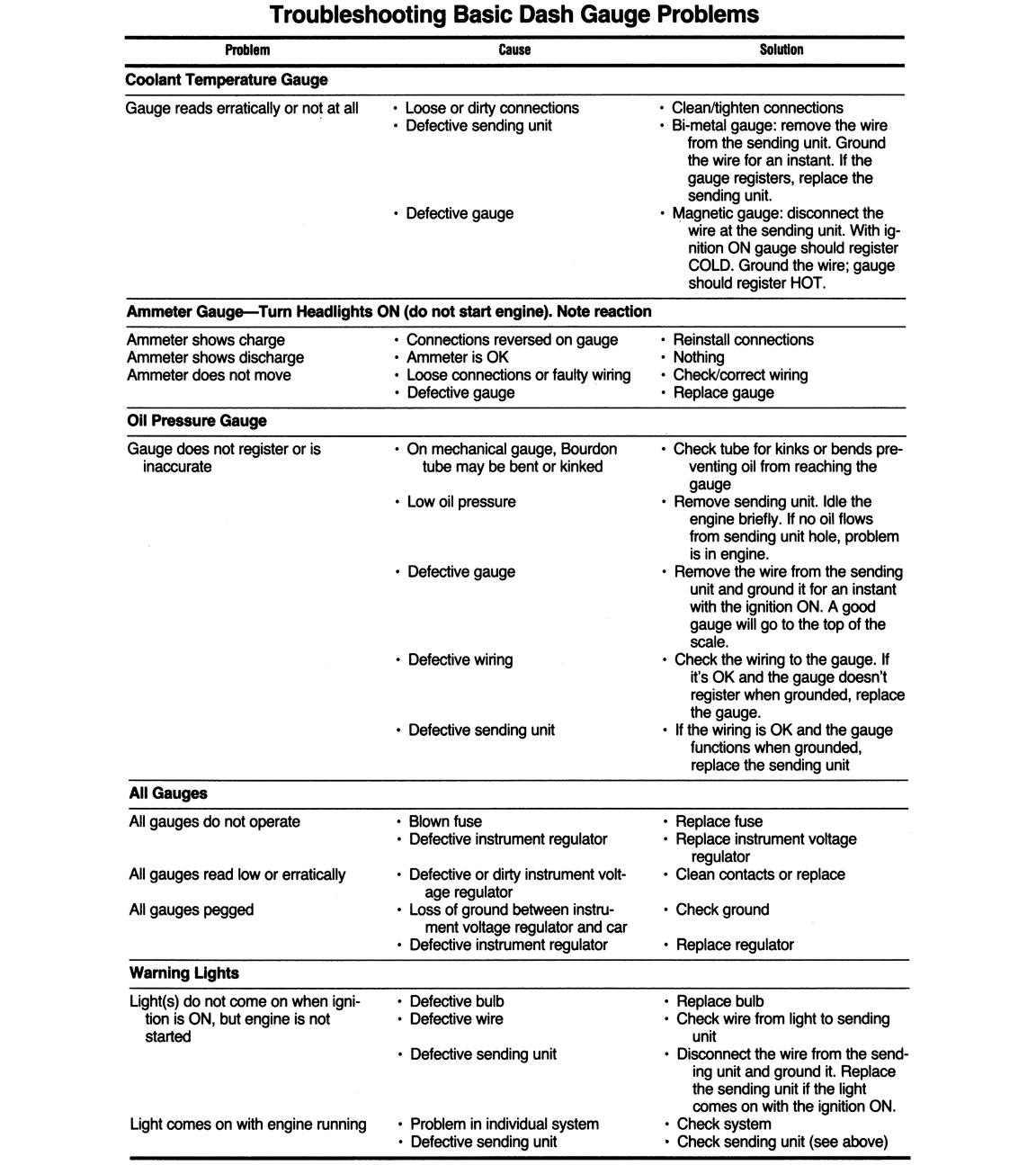

    TROUBLESHOOTING BASIC DASH GAUGE PROBLEMS

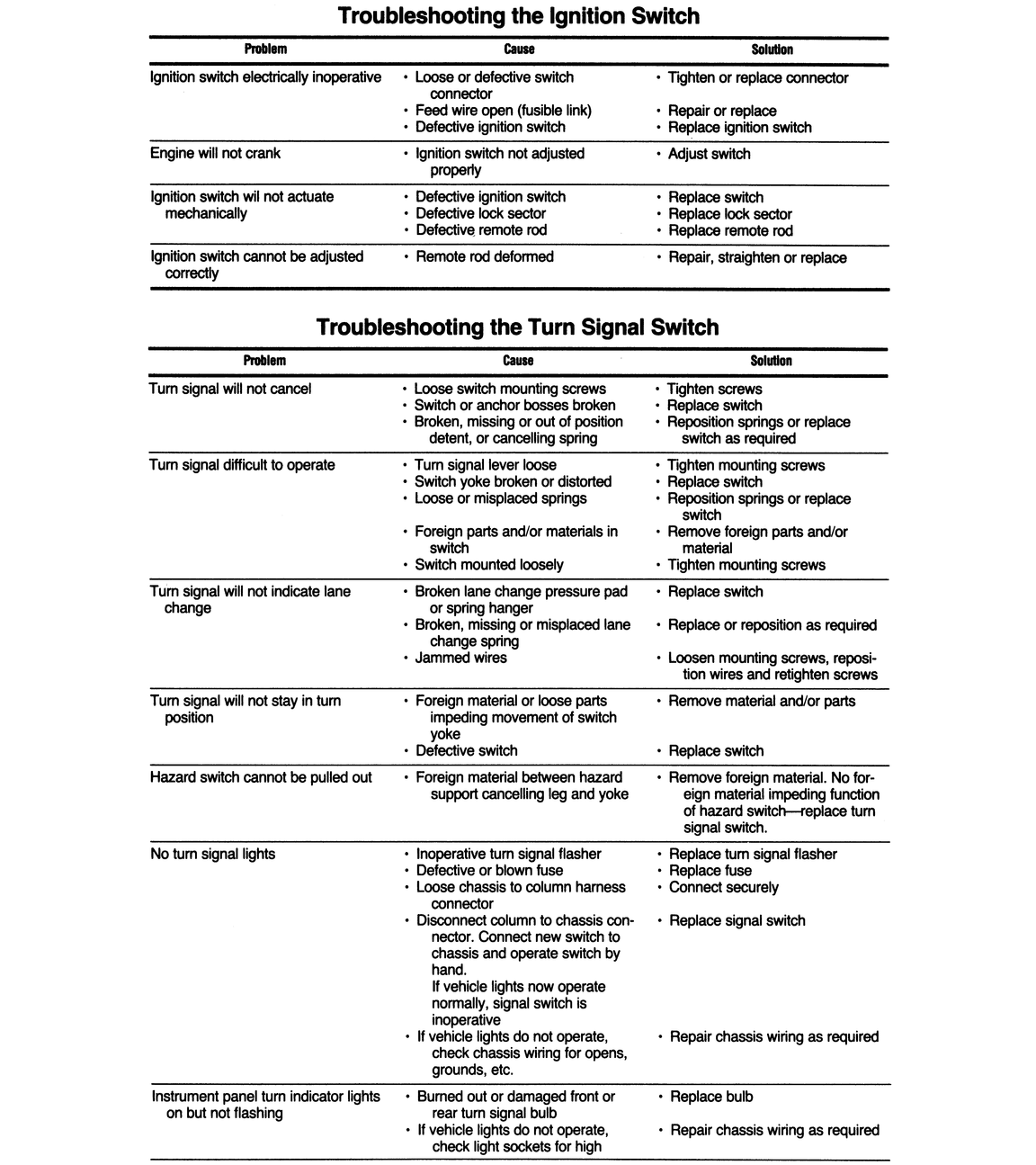

    TROUBLESHOOTING THE IGNITION SWITCH

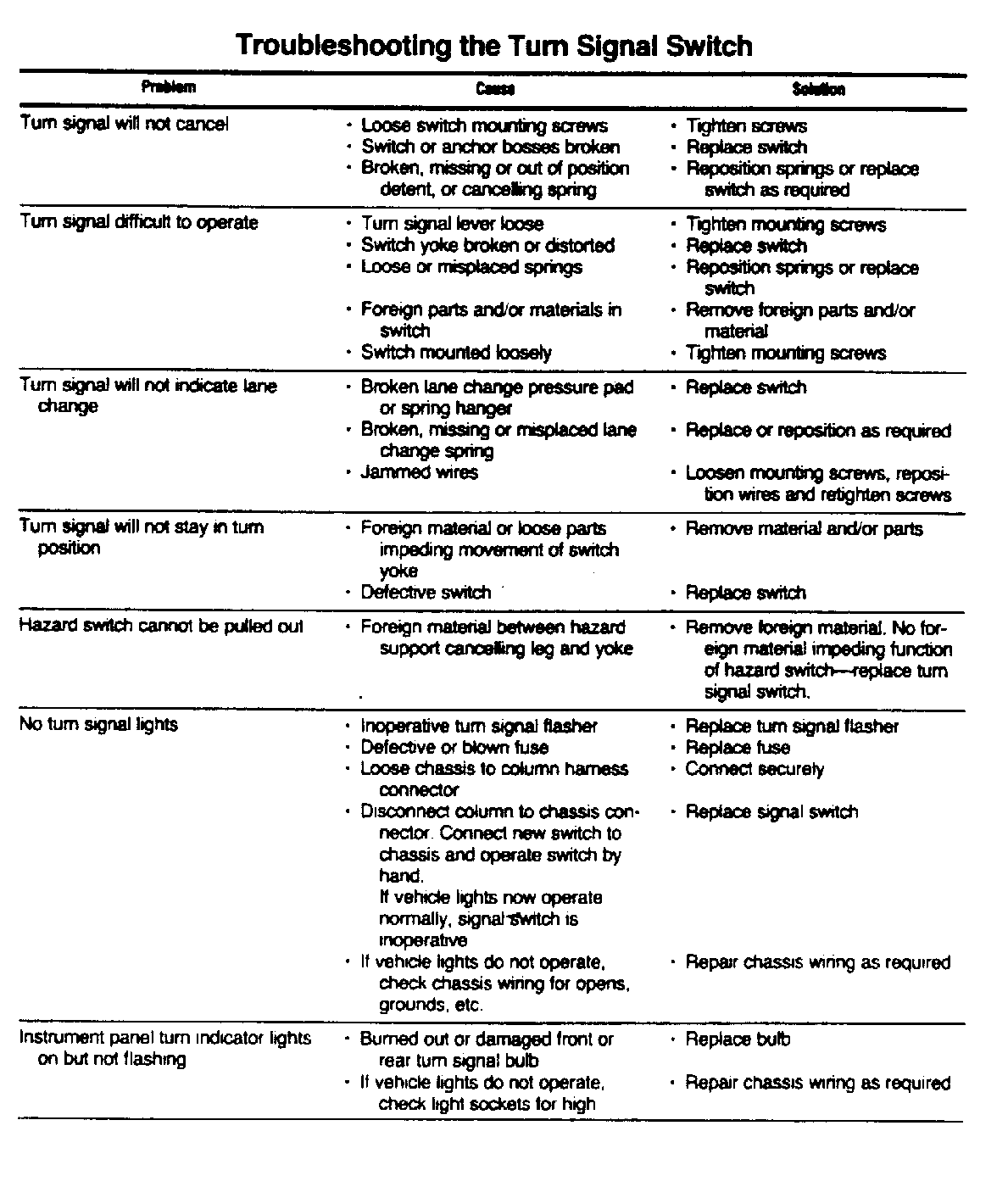

    TROUBLESHOOTING THE TURN SIGNAL SWITCH

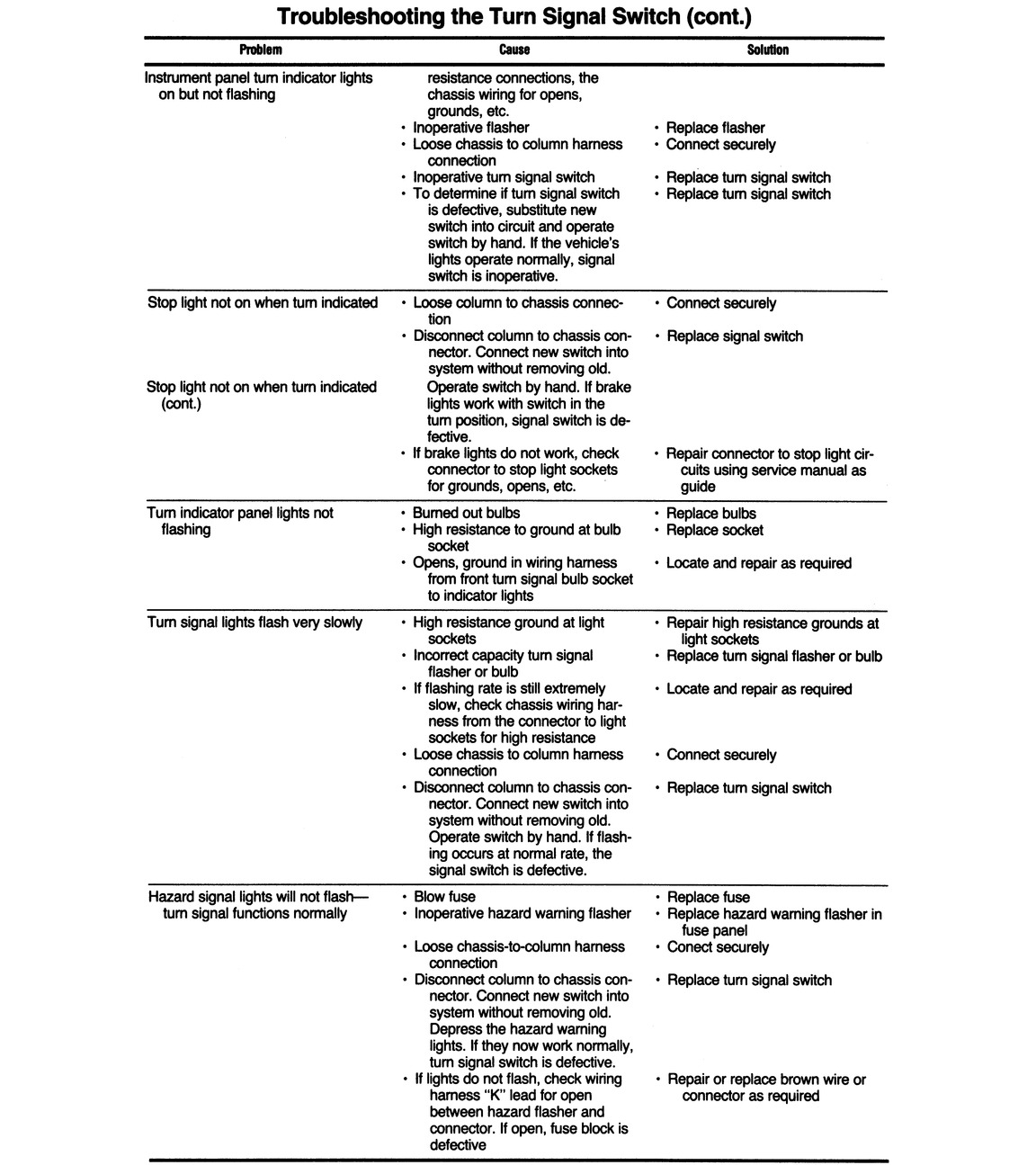

    TROUBLESHOOTING THE TURN SIGNAL SWITCH
