The fusible link is located next to the battery positive terminal. All current except for the starter motor flows through it. If excessive current flows through the fusible link the fusible metal melts, thus breaking the circuit and protecting the electrical equipment from damage.

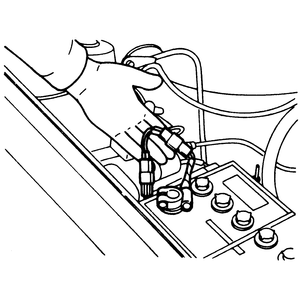

| Fig. 1: The fusible link can be found next to the battery
|
