Ride height is measured from the center of the lower control arm to the ground. It should be 8–9 in. (227–238mm). Adjust it by turning the adjustment cam on the front of each torsion bar. Turning the cam clockwise raises, and counterclockwise lowers ride height. Each notch in the cam corresponds to an 3 in. (8mm) change in height.
Access to the cams is obtained through the cooling slots located on either side, below the bumper.

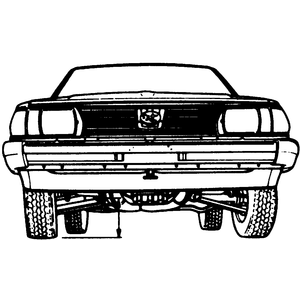

| Fig. 1: Measuring ride height
|
