SYSTEM BLEEDING

  1. Raise and support the front of the vehicle with jackstands.
  2. Refill the reservoir with power steering fluid.
  3. With the engine running, turn the steering wheel (back and forth), from lock-to-lock, until the air is removed from the fluid.
  4. Lower the vehicle, recheck the reservoir fluid level and replace the reservoir cap.

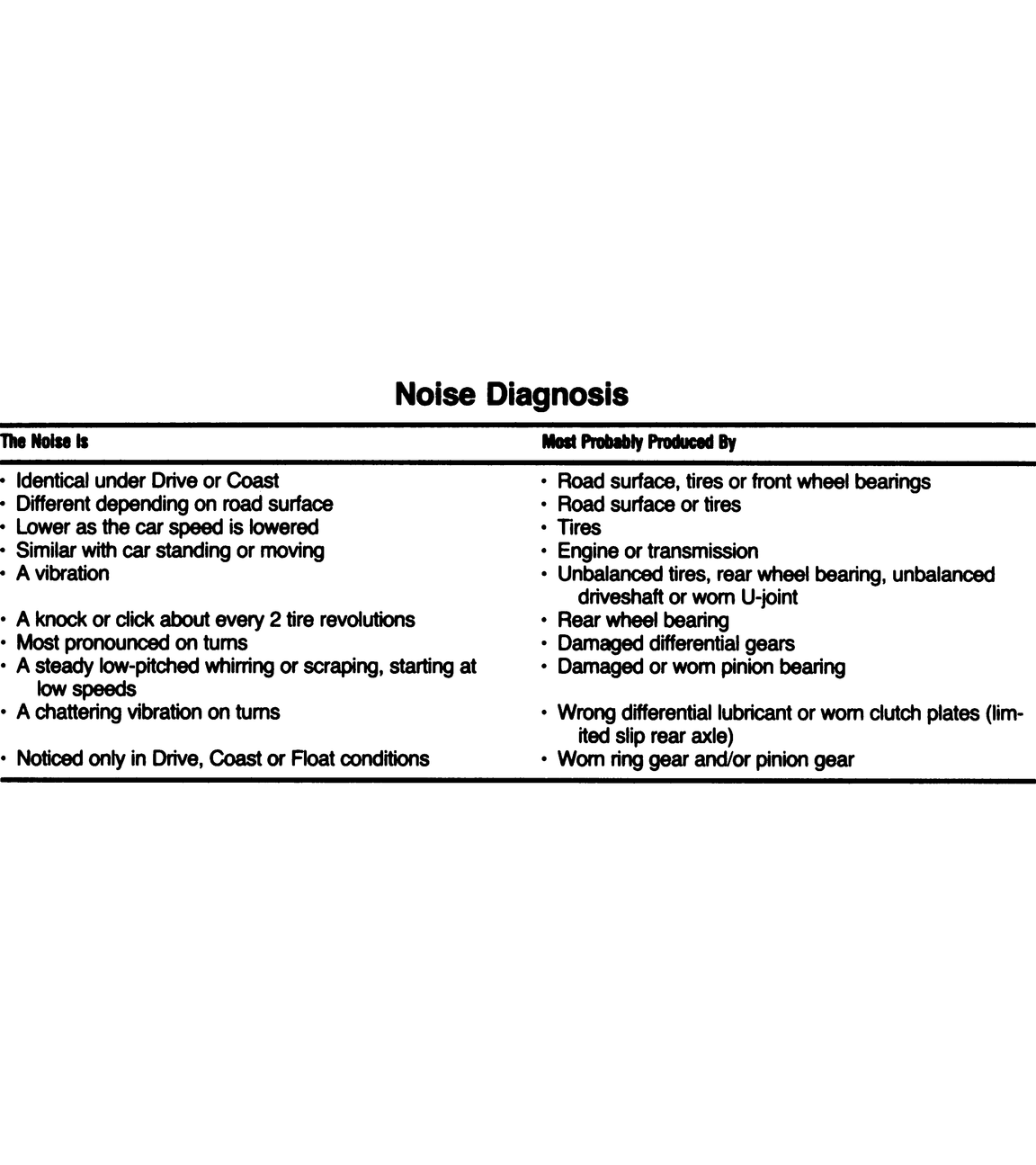

    NOISE DIAGNOSIS

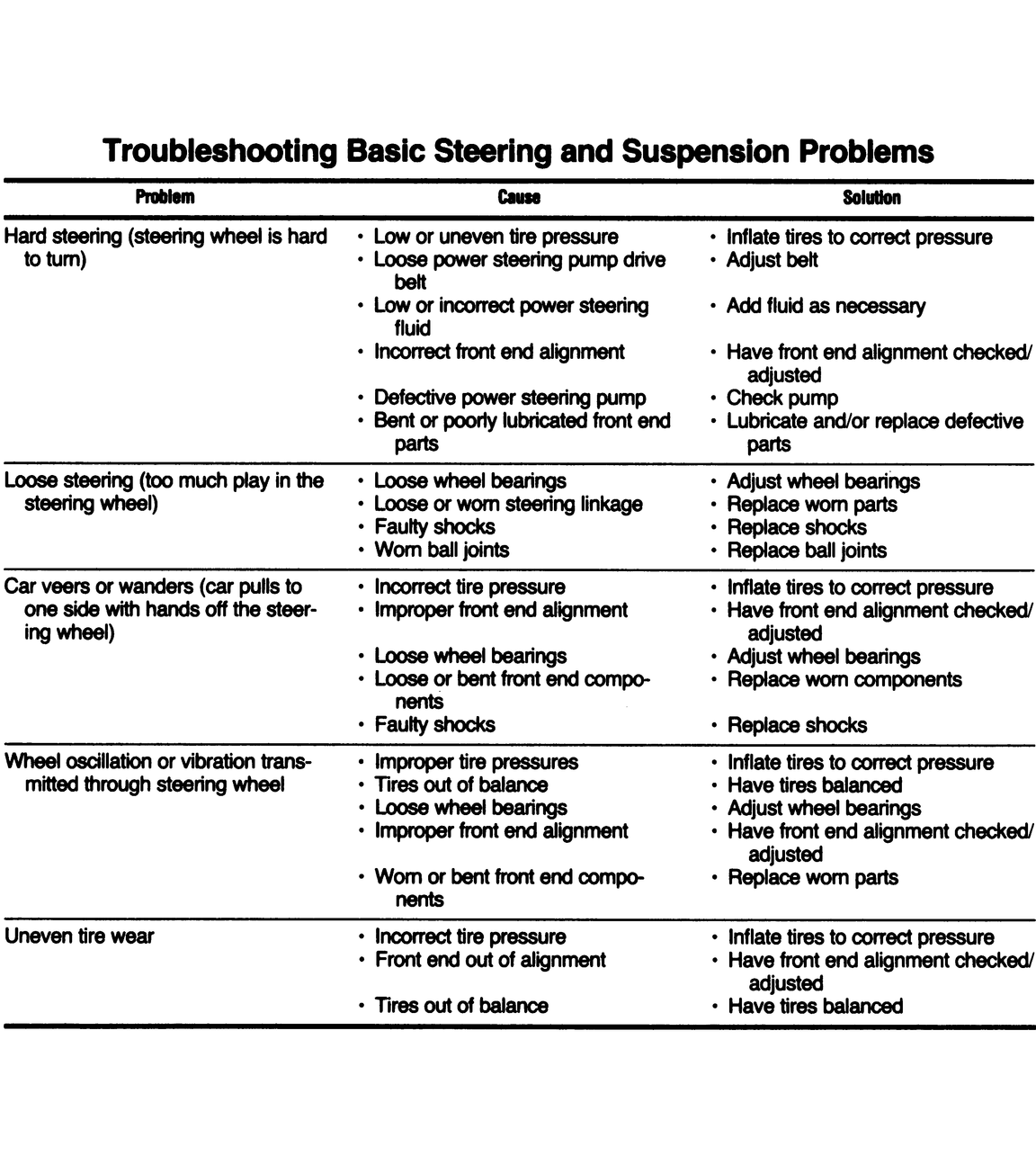

    TROUBLESHOOTING BASIC STEERING AND SUSPENSION PROBLEMS

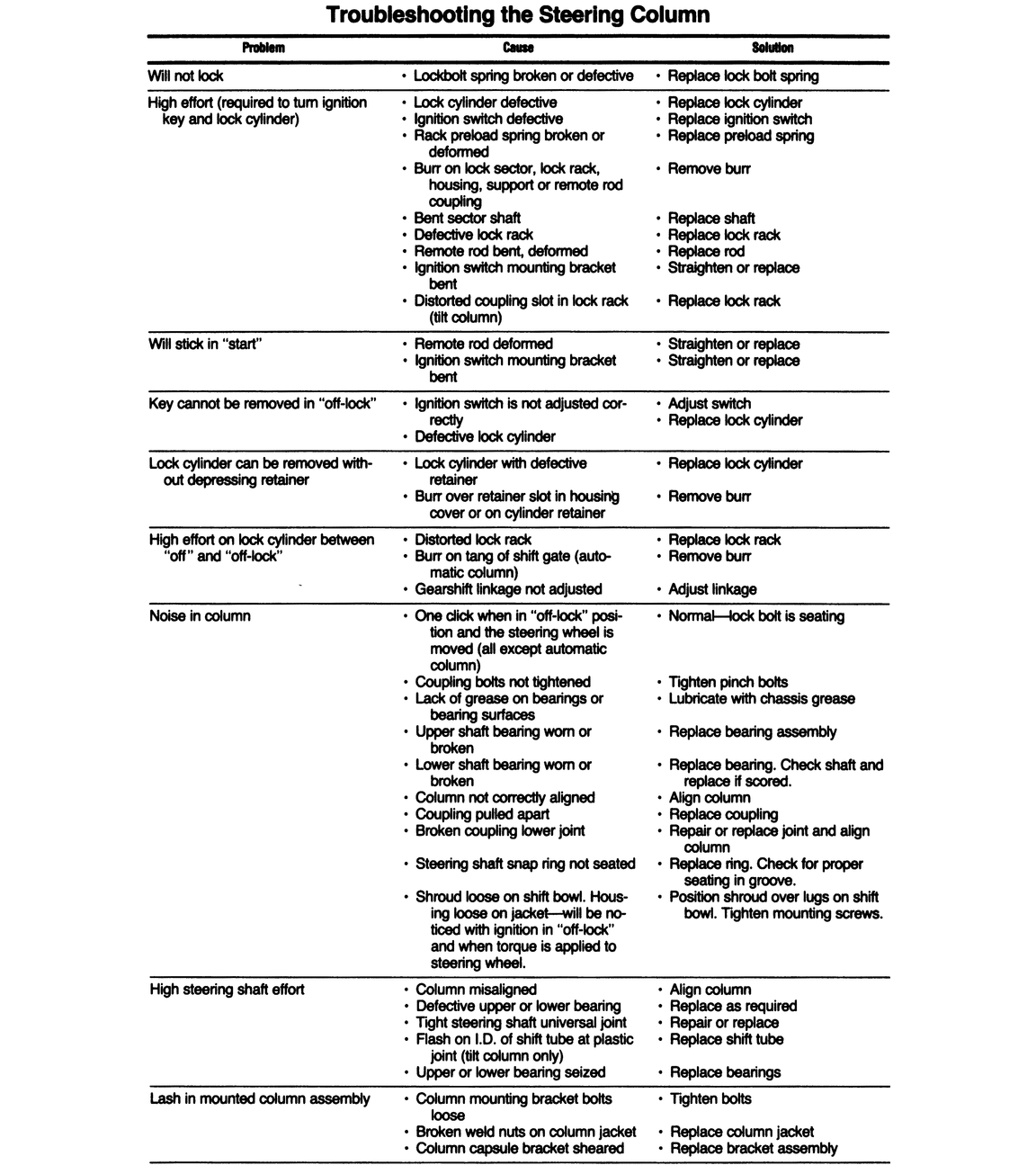

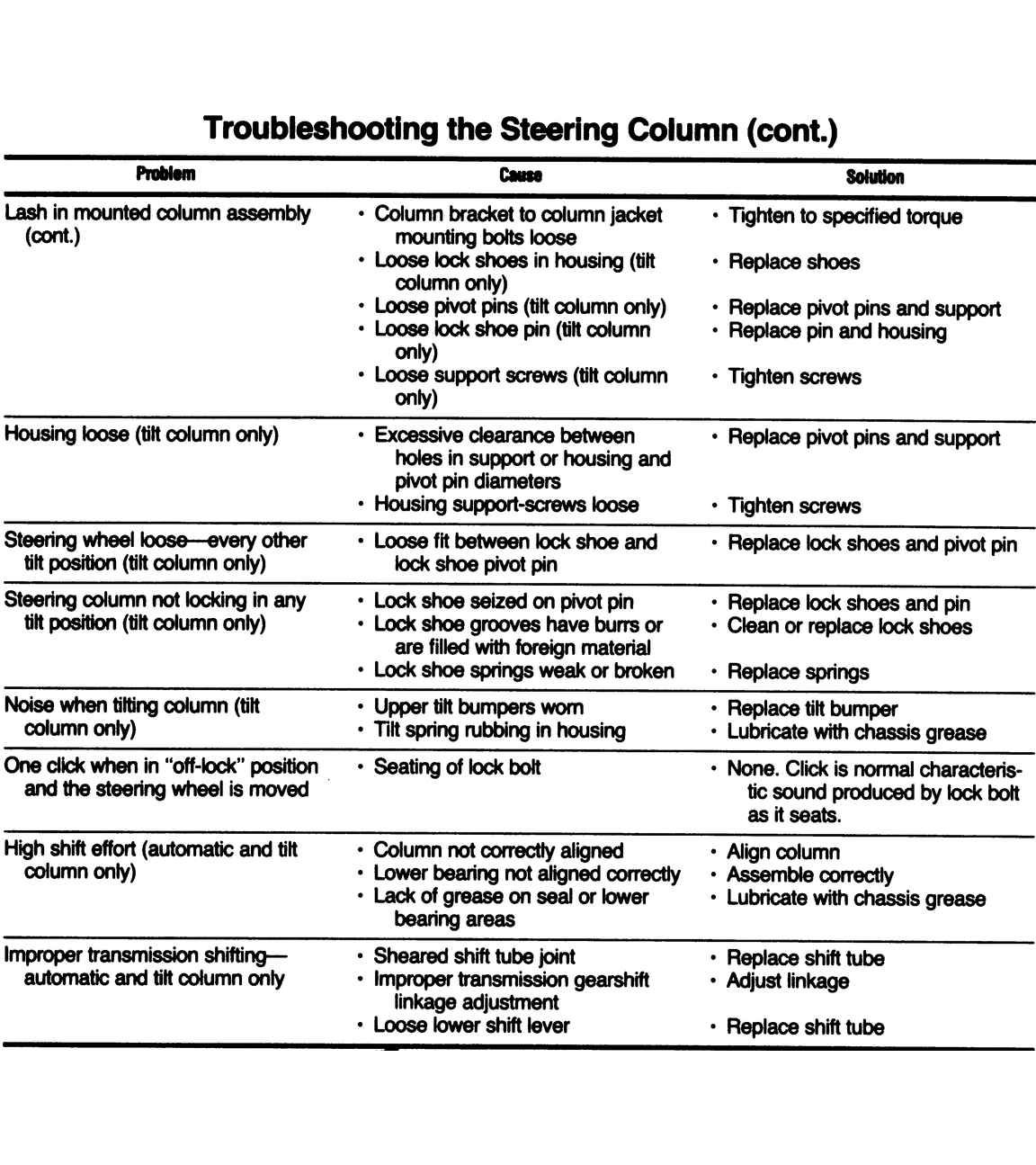

    TROUBLESHOOTING THE STEERING COLUMN

    TROUBLESHOOTING THE STEERING COLUMN

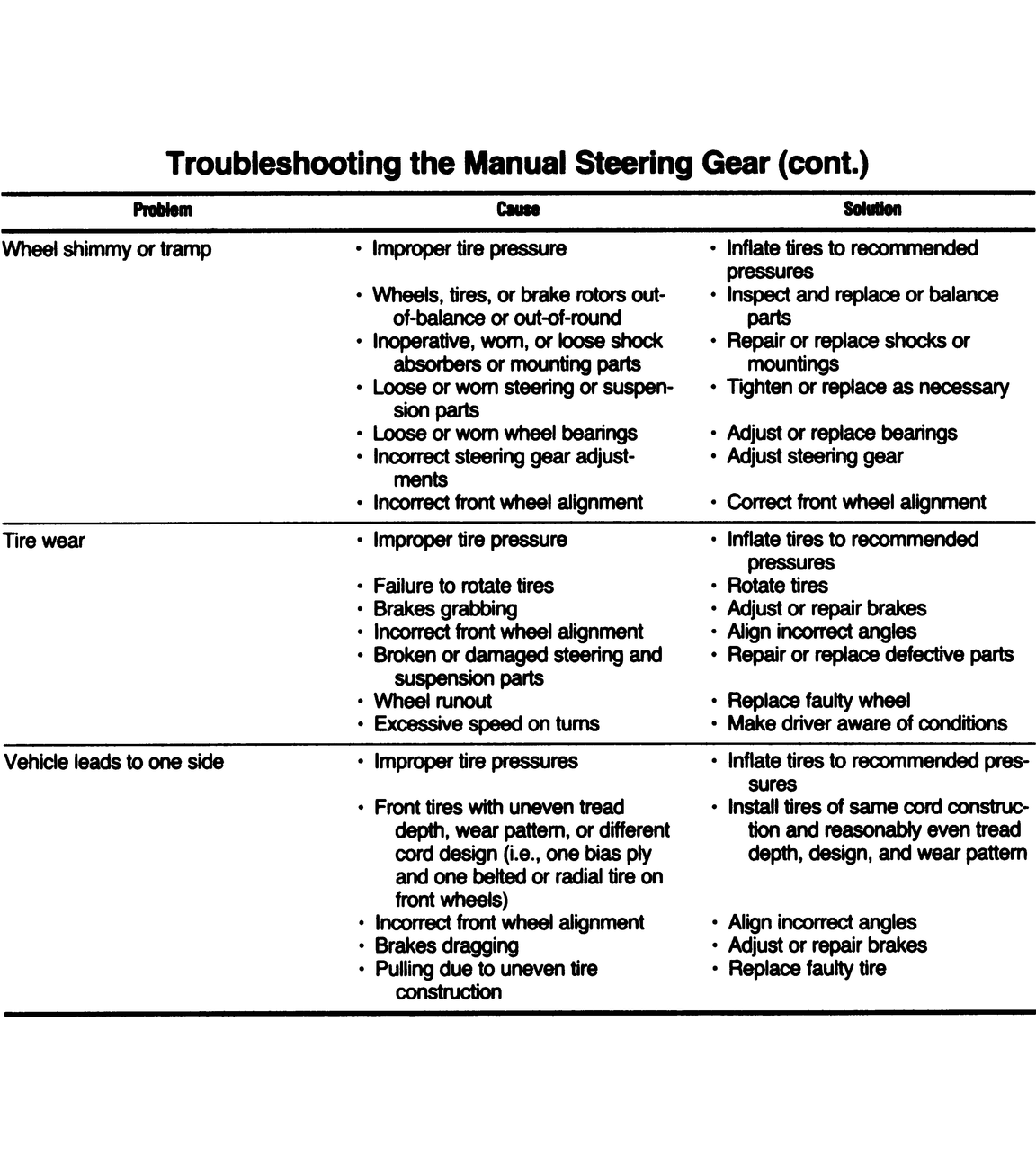

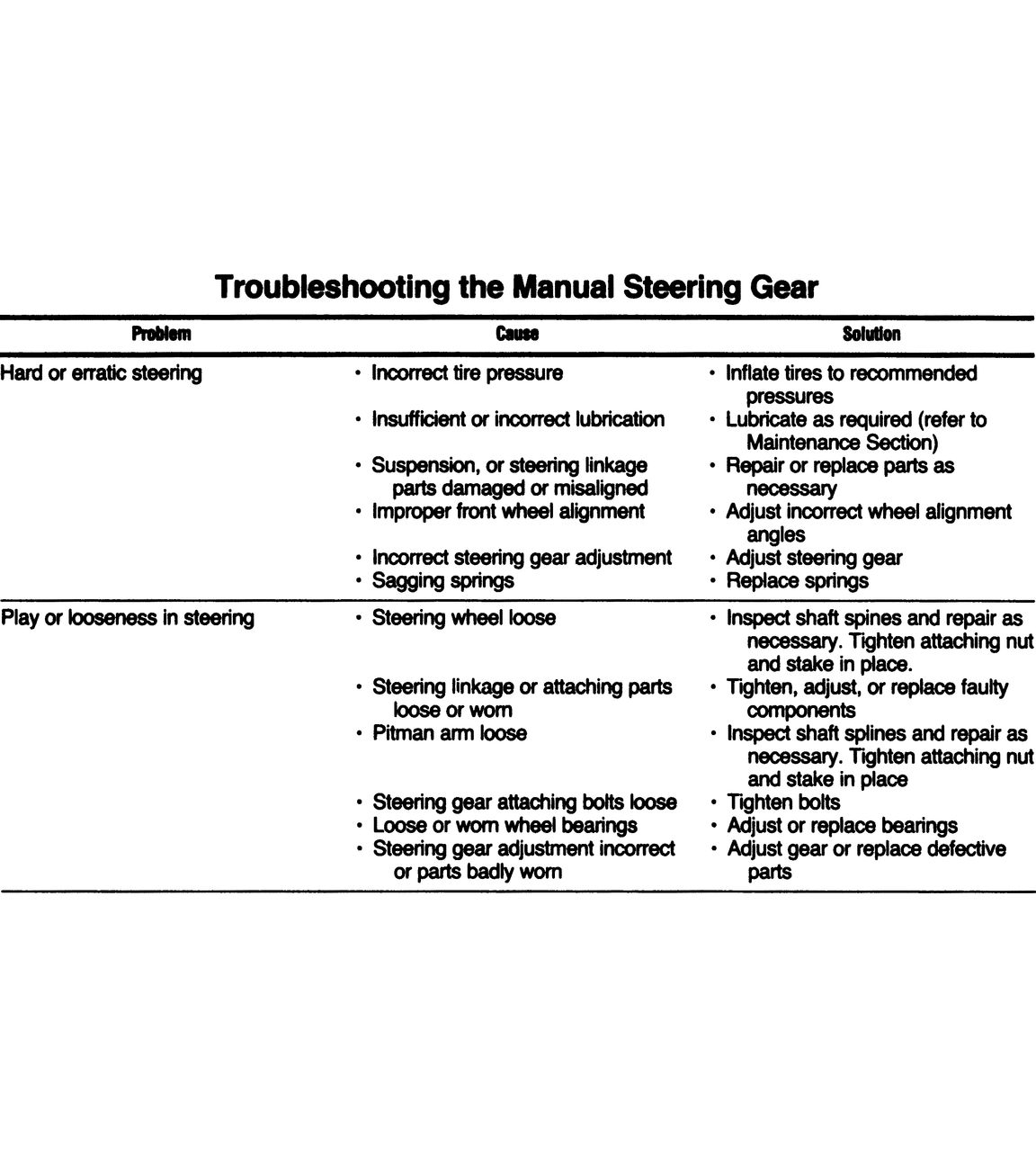

    TROUBLESHOOTING THE MANUAL STEERING GEAR

    TROUBLESHOOTING THE MANUAL STEERING GEAR

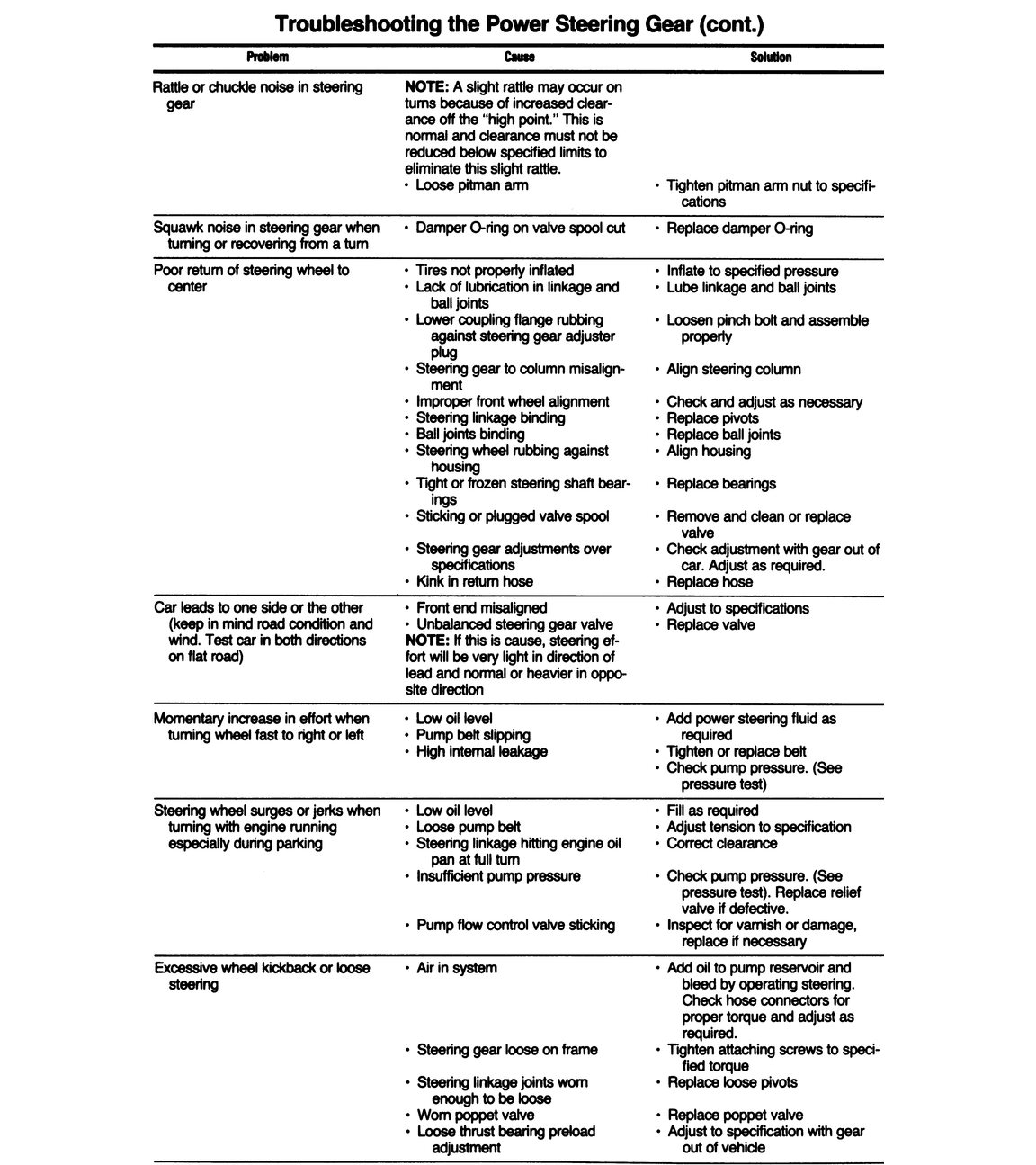

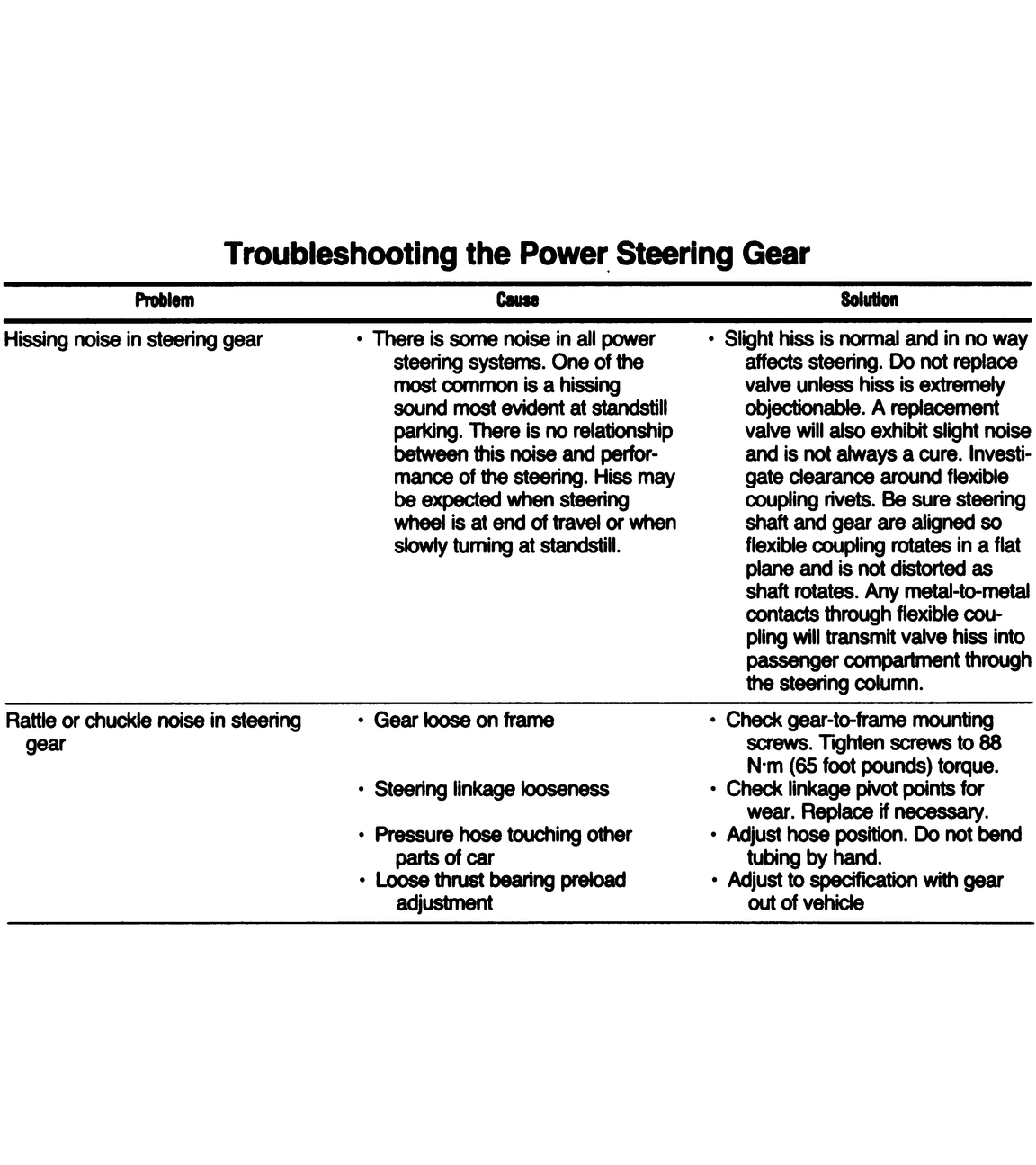

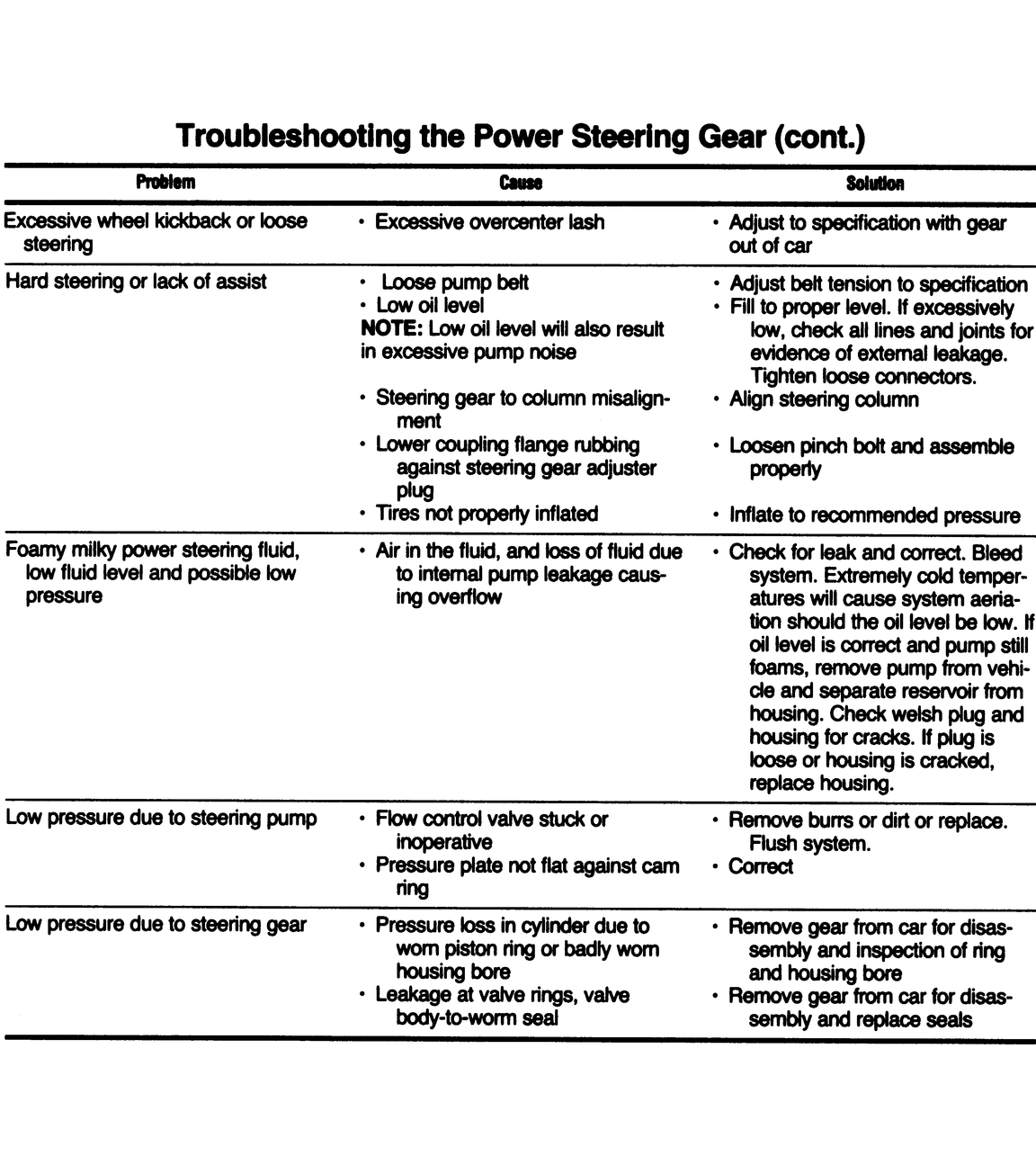

    TROUBLESHOOTING THE POWER STEERING GEAR

    TROUBLESHOOTING THE POWER STEERING GEAR

    TROUBLESHOOTING THE POWER STEERING GEAR

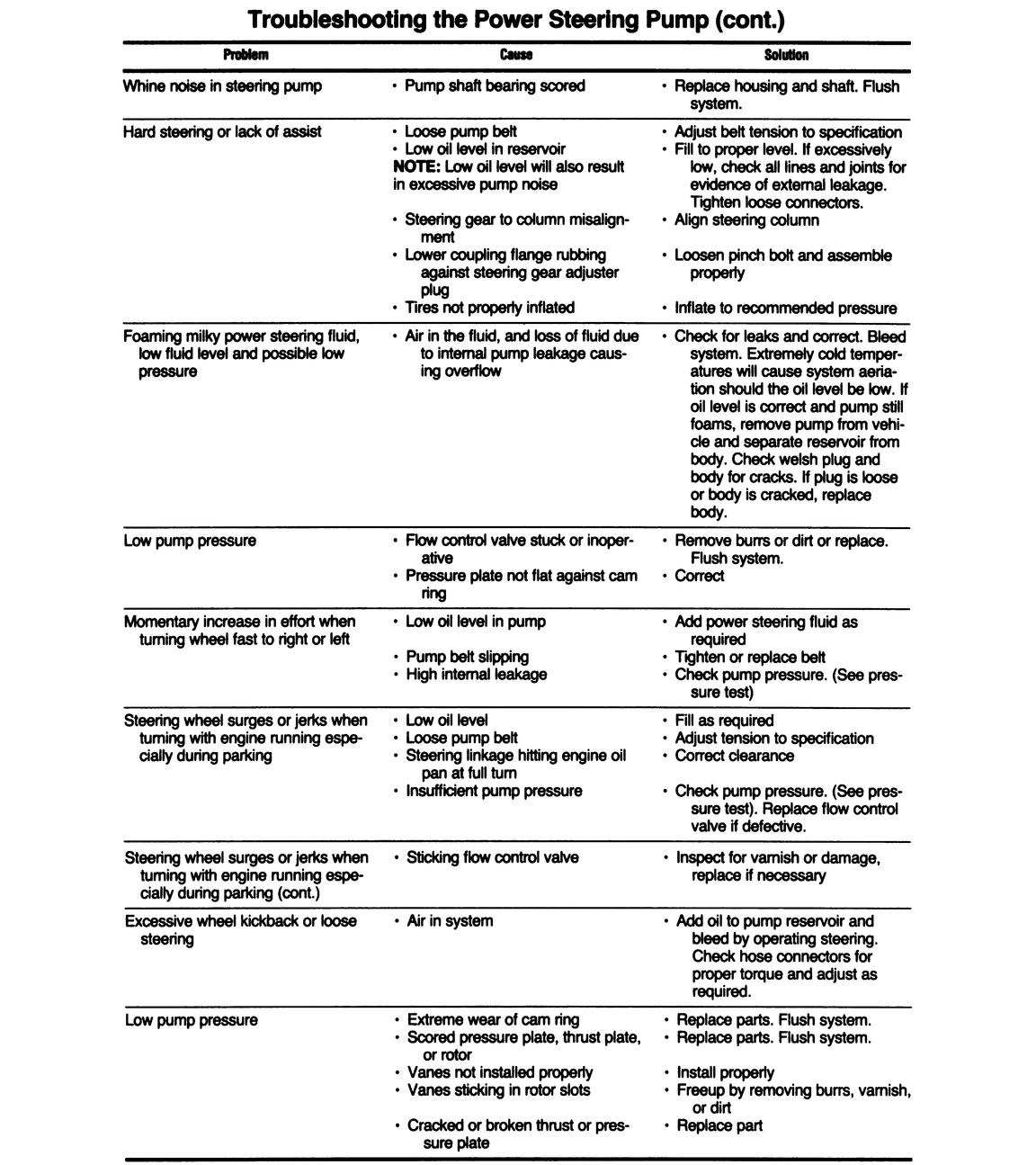

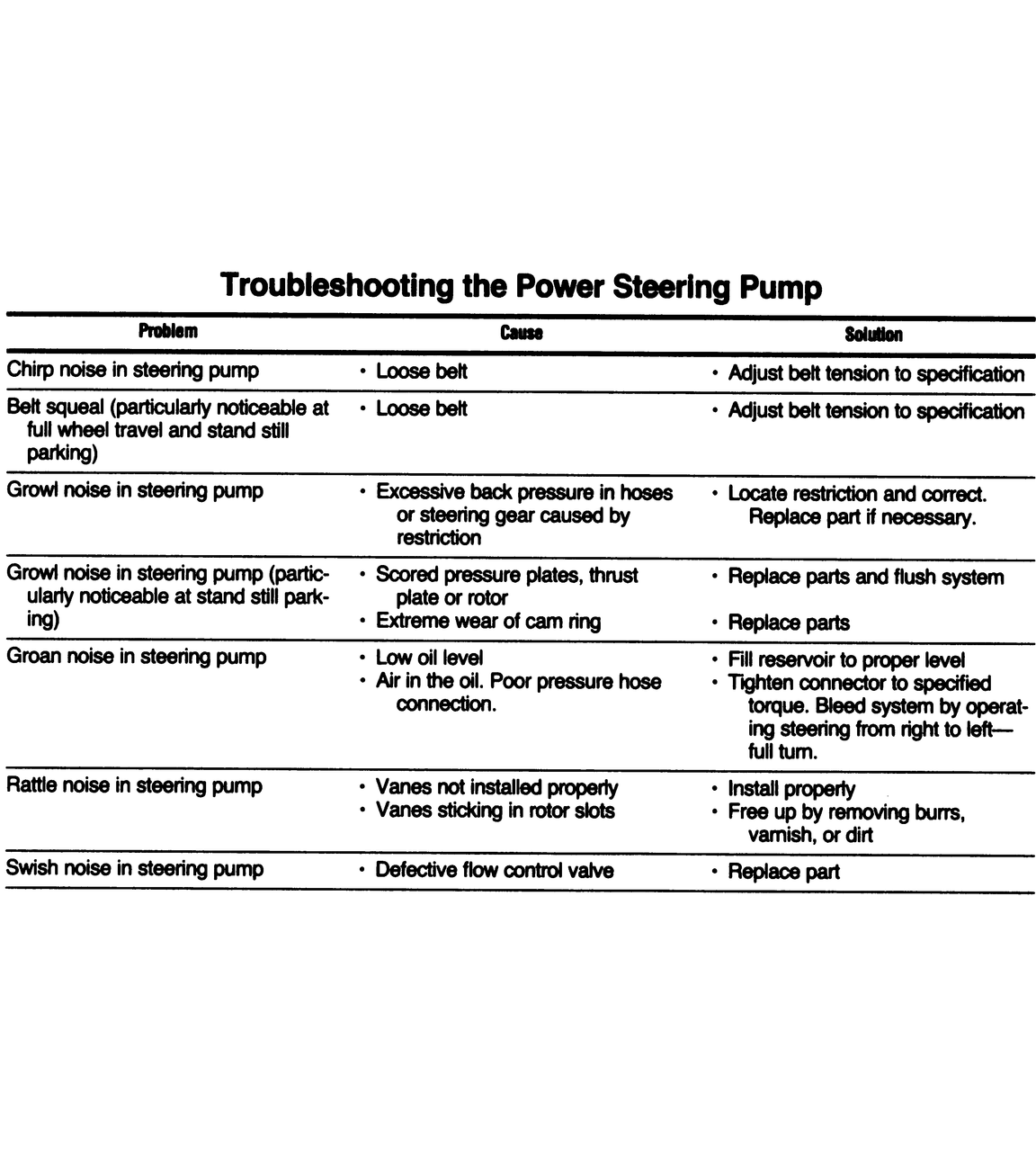

    TROUBLESHOOTING THE POWER STEERING PUMP

    TROUBLESHOOTING THE POWER STEERING PUMP

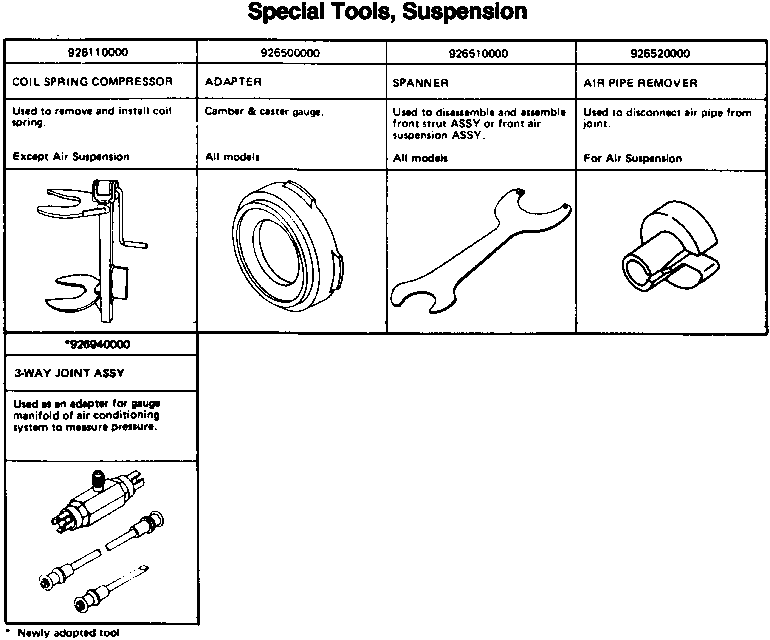

    SPECIAL TOOLS, SUSPENSION

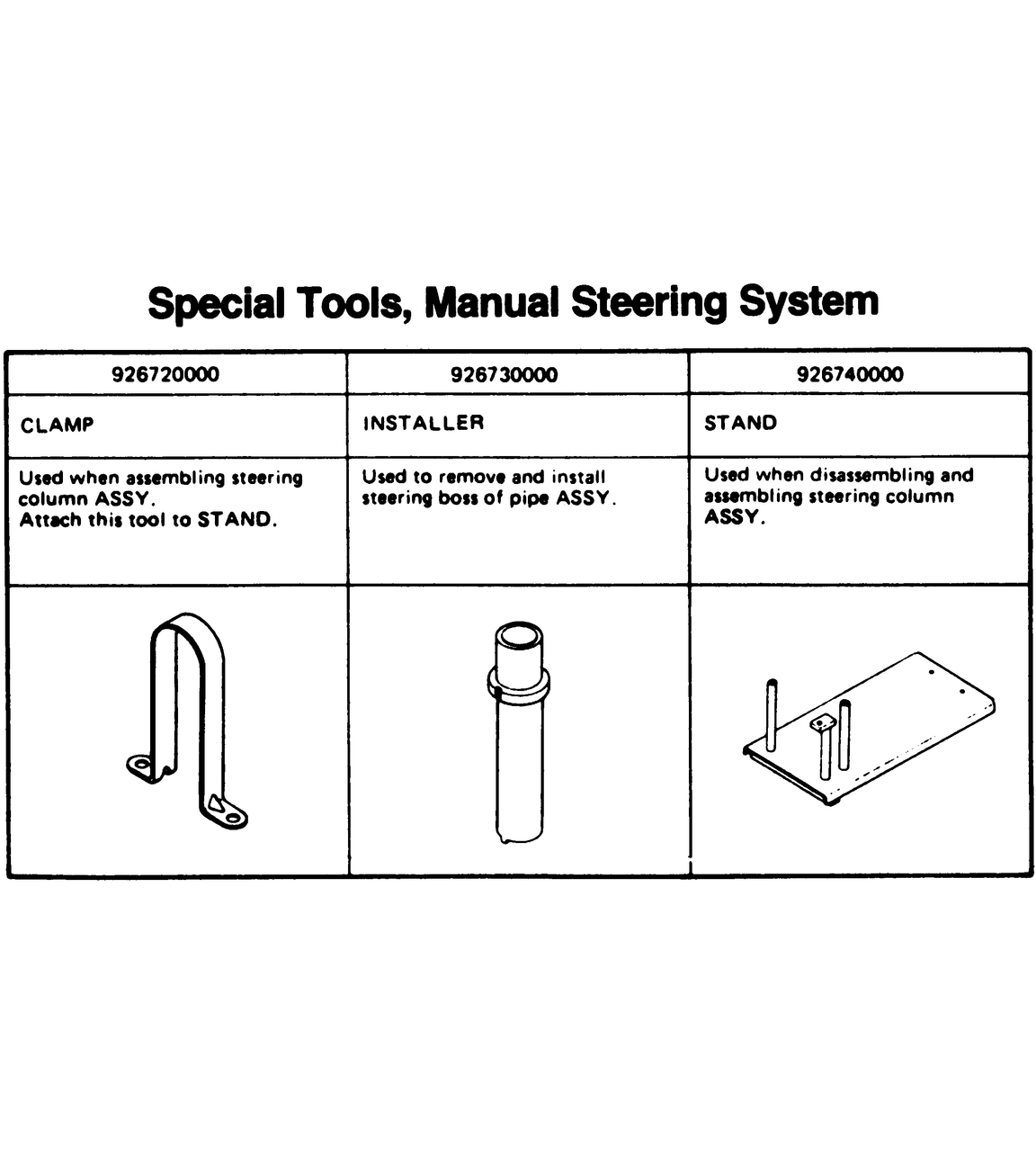

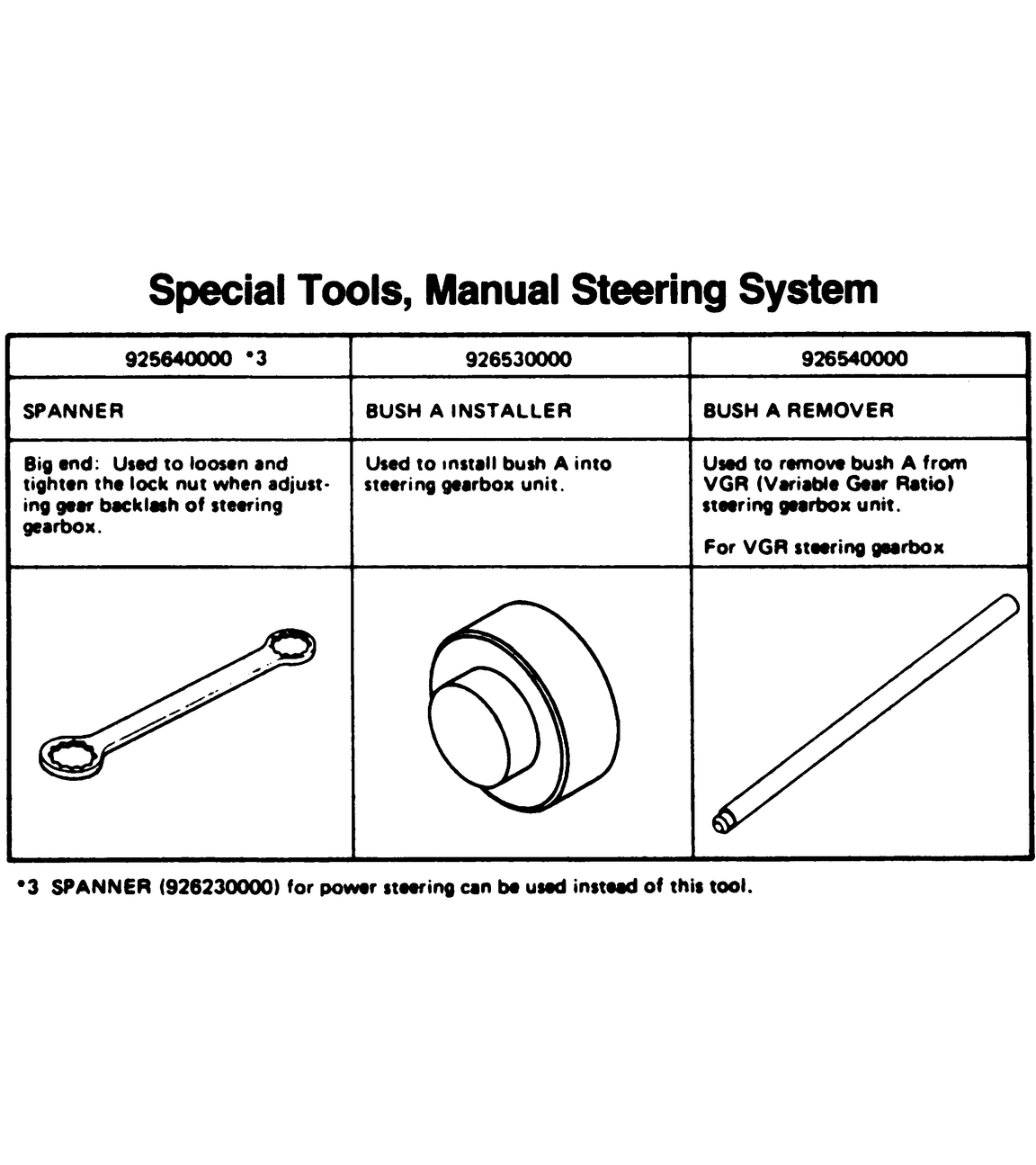

    SPECIAL TOOLS, MANUAL STEERING SYSTEM

    SPECIAL TOOLS, MANUAL STEERING SYSTEM

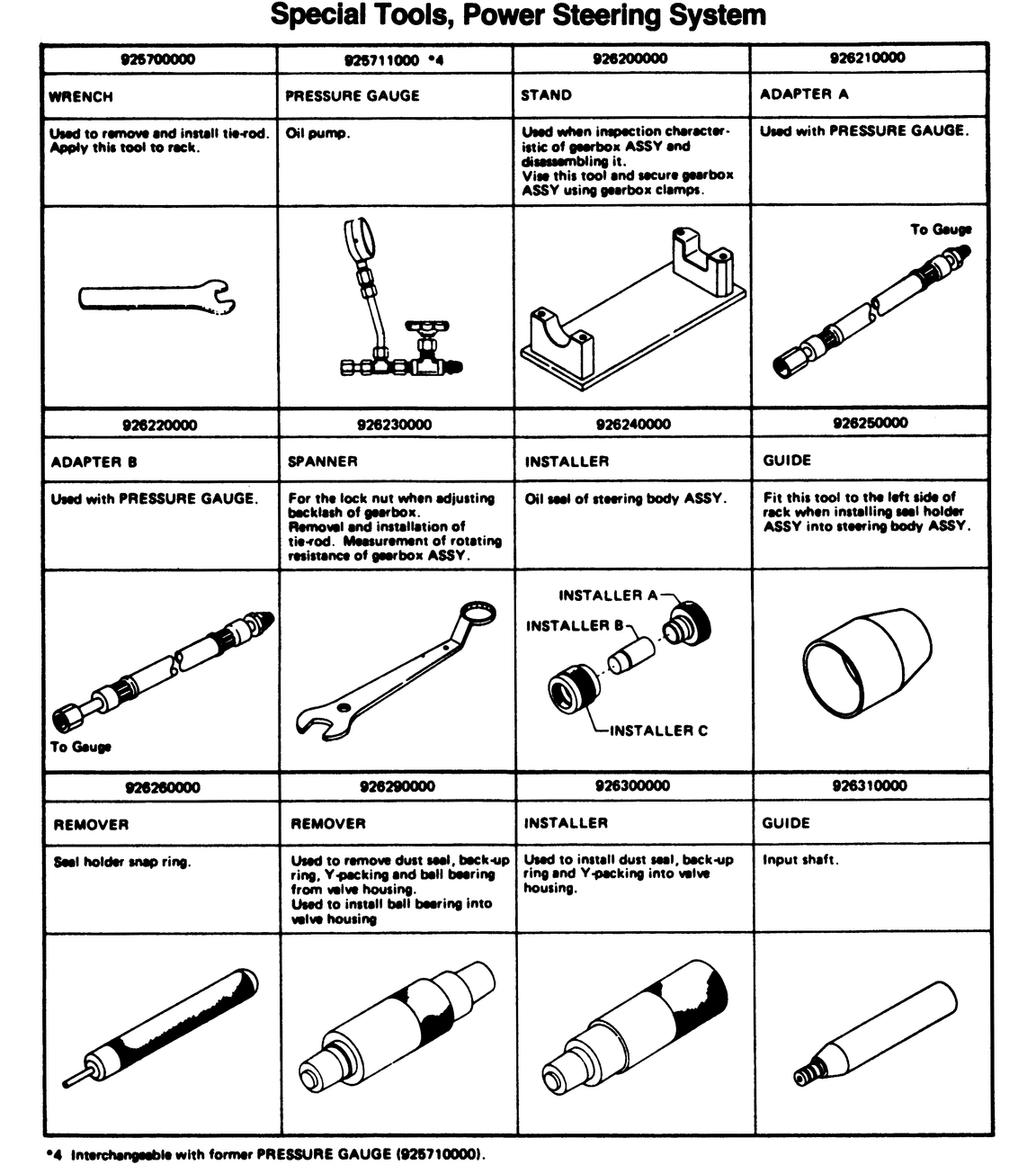

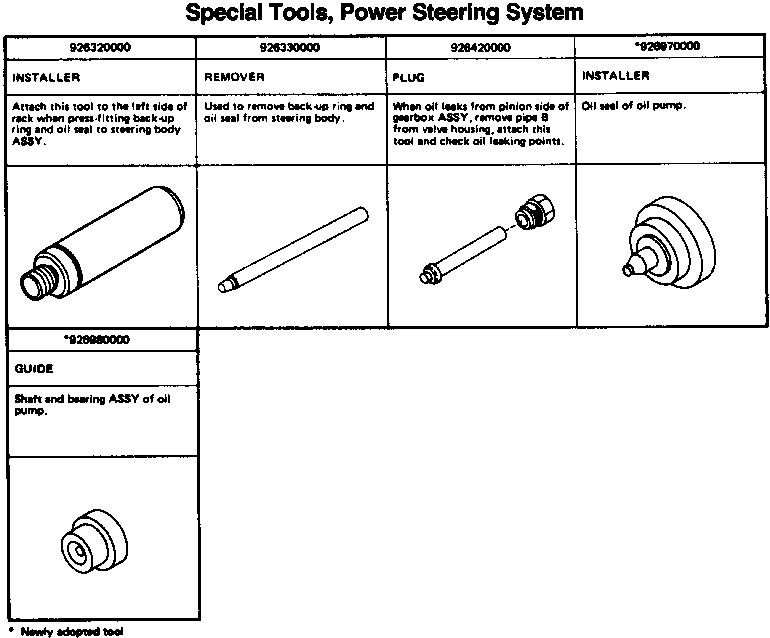

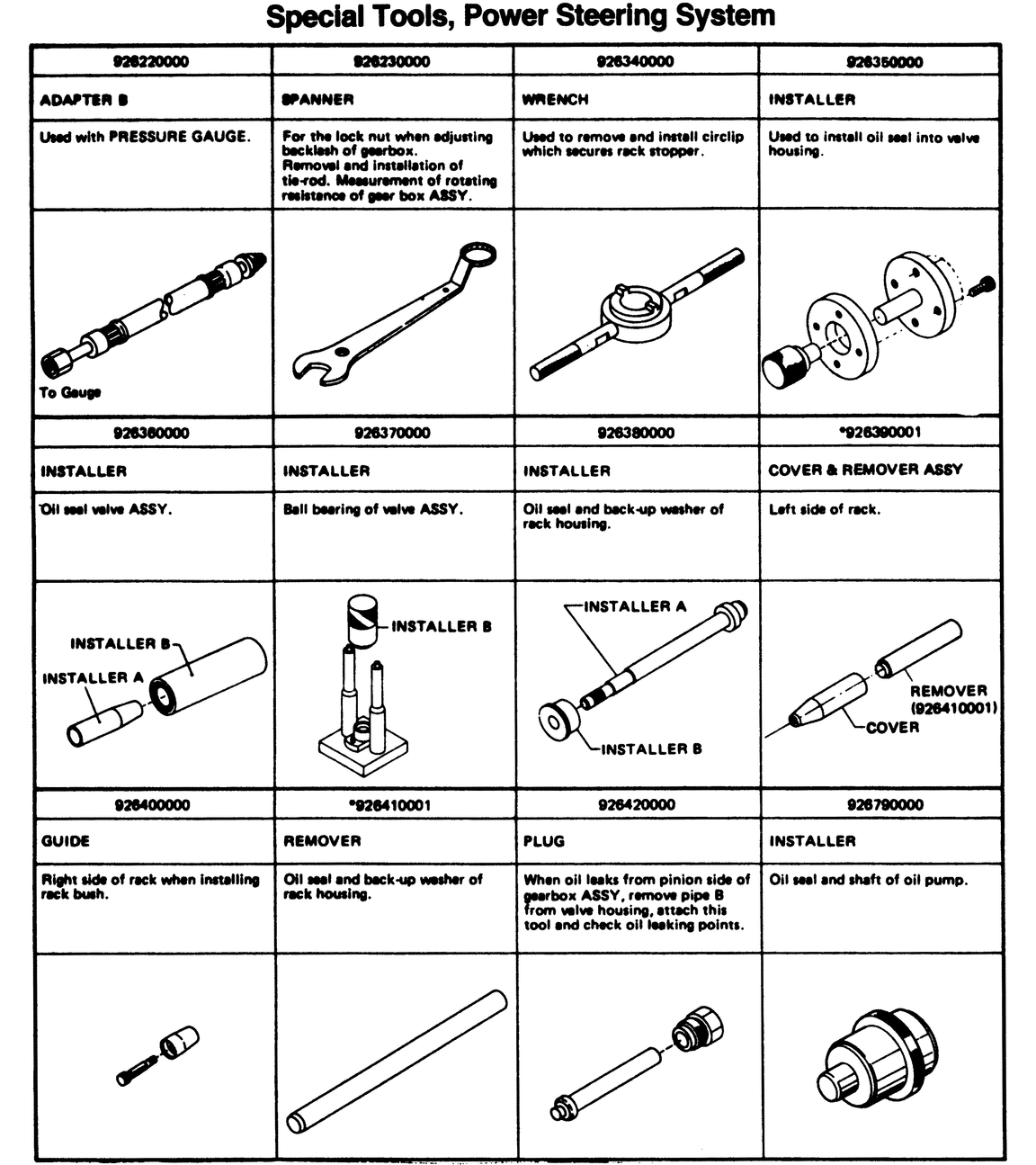

    SPECIAL TOOLS, POWER STEERING SYSTEM

    SPECIAL TOOLS, POWER STEERING SYSTEM

    SPECIAL TOOLS, POWER STEERING SYSTEM
