Wheel Lug Studs

REPLACEMENT

Front Wheels

The brake disc must be supported properly before pressing the wheel stud in or out.

1. Remove the rotor assembly from the car.
2. Remove the damaged bolt with a press. Do not damage the wheel mounting surface on the hub flange.

   To install:

3. Install a new serrated bolt into the hole in the hub. Tap lightly with a hammer to start the bolt serrations in the hole, make sure the bolt is square with the hub flange.

Rear Wheels

1. Raise and support the car. Remove the wheels from the vehicle.
2. ark the relationship of the wheel assembly to the axle flange and remove the brake drum.
3. Using a press remove the wheel stud from the axle flange.

   To install:

4. Insert a new wheel stud in the axle flange hole. Rotate the bolt slowly to assure the serrations are aligned with those made with the original bolt.
5. Place a flat washer over the outside end of the wheel stud and thread a standard wheel nut with the flat side against the washer. Tighten the wheel nut until the bolt head seats against the axle flange.

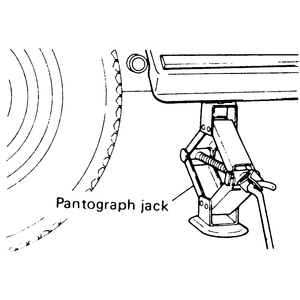

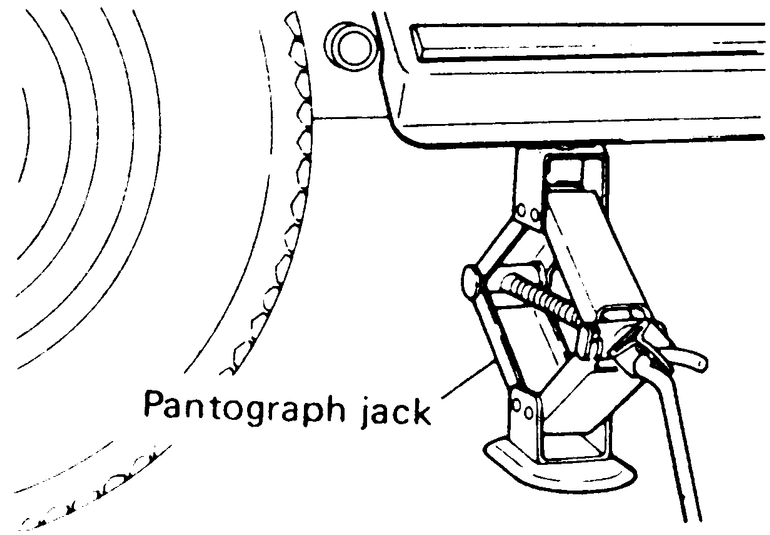

   Fig. 1: Raising the vehicle using the pantograph jack
