Hood

REMOVAL & INSTALLATION

NOTE: You are going to need an assistant for this procedure.

1. Open the hood and trace the outline of the hinges on the body.
2. While an assistant holds the hood, remove the hinge-to-body bolts and lift the hood off.

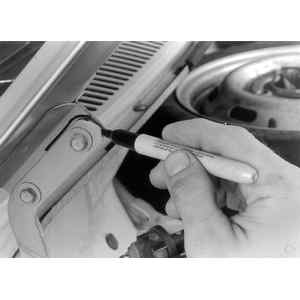

   Fig. 1: Open the hood and trace the outline of the hinges on the body

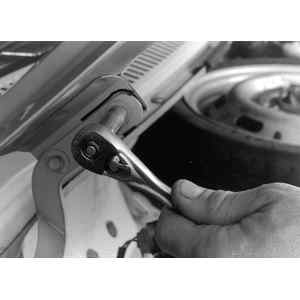

   Fig. 2: Remove the hinge-to-body bolts and lift the hood off

   To install:

3. While an assistant holds the hood, align the hinges and the outlines previously made.
4. Fasten the hinge-to-body bolts and check that the hood closes properly.
5. Adjust hood alignment, if necessary.
