Regulator

REMOVAL & INSTALLATION

1. Remove the door panel and window glass as described in this section.
2. Remove the sealing cover.

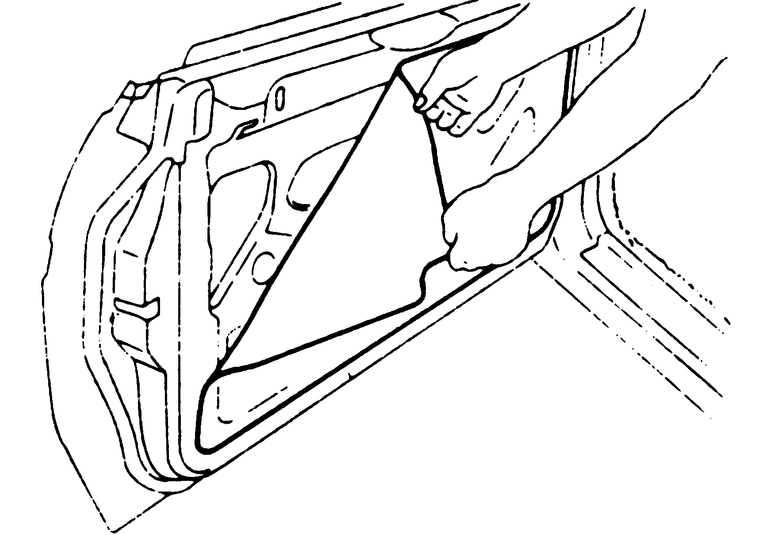

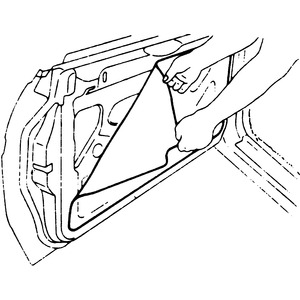

   Fig. 1: Removing the sealing cover

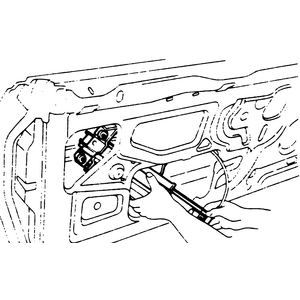

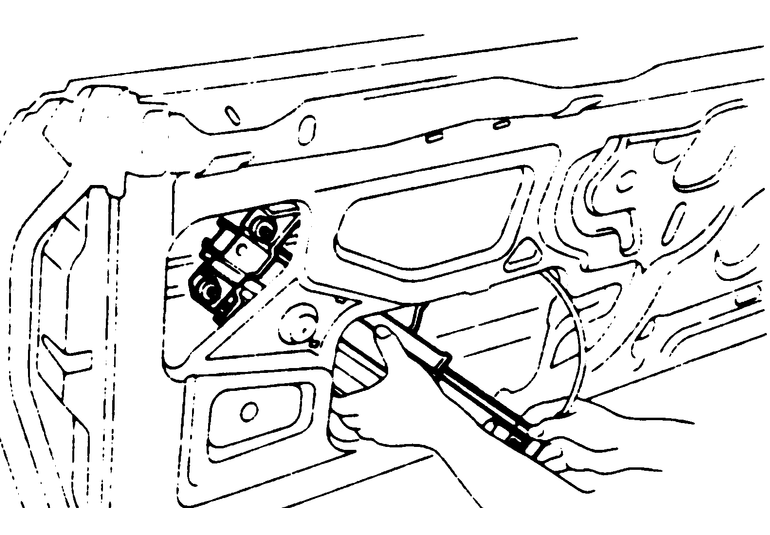

   Fig. 2: Remove the regulator through the access hole

3. Remove the wire clip (manual type only).
4. Remove the regulator base plate and rail.
5. Remove the regulator assembly through the service hole in the underside of the door.
6. Replace any worn or broken parts.
7. Lubricate all sliding parts and reinstall.
8. Tighten the base plate mounting bolts 4–7 ft. lbs. (5–9 Nm) and the rail mounting nut 7–13 ft. lbs. (9–17 Nm).
